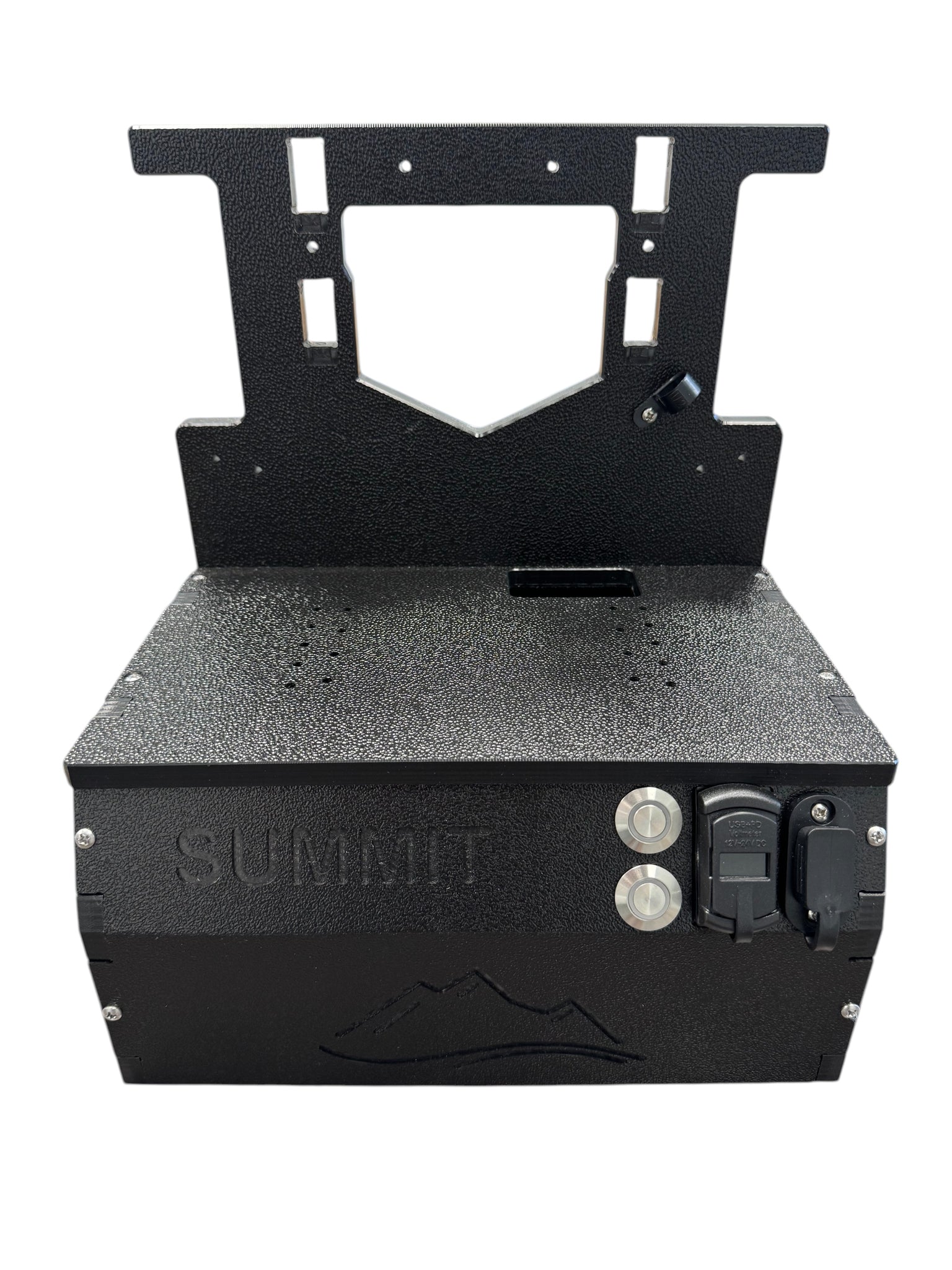

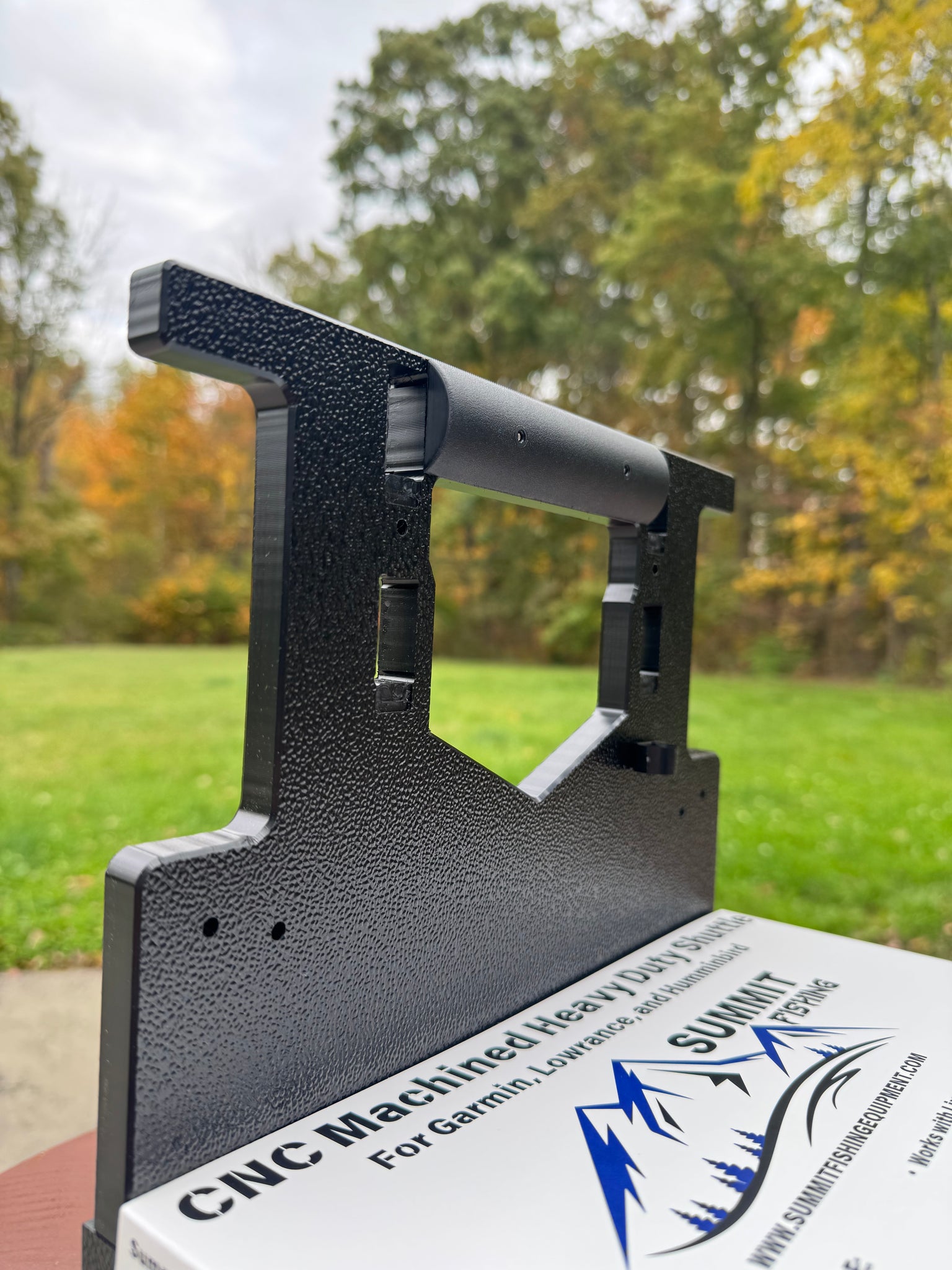

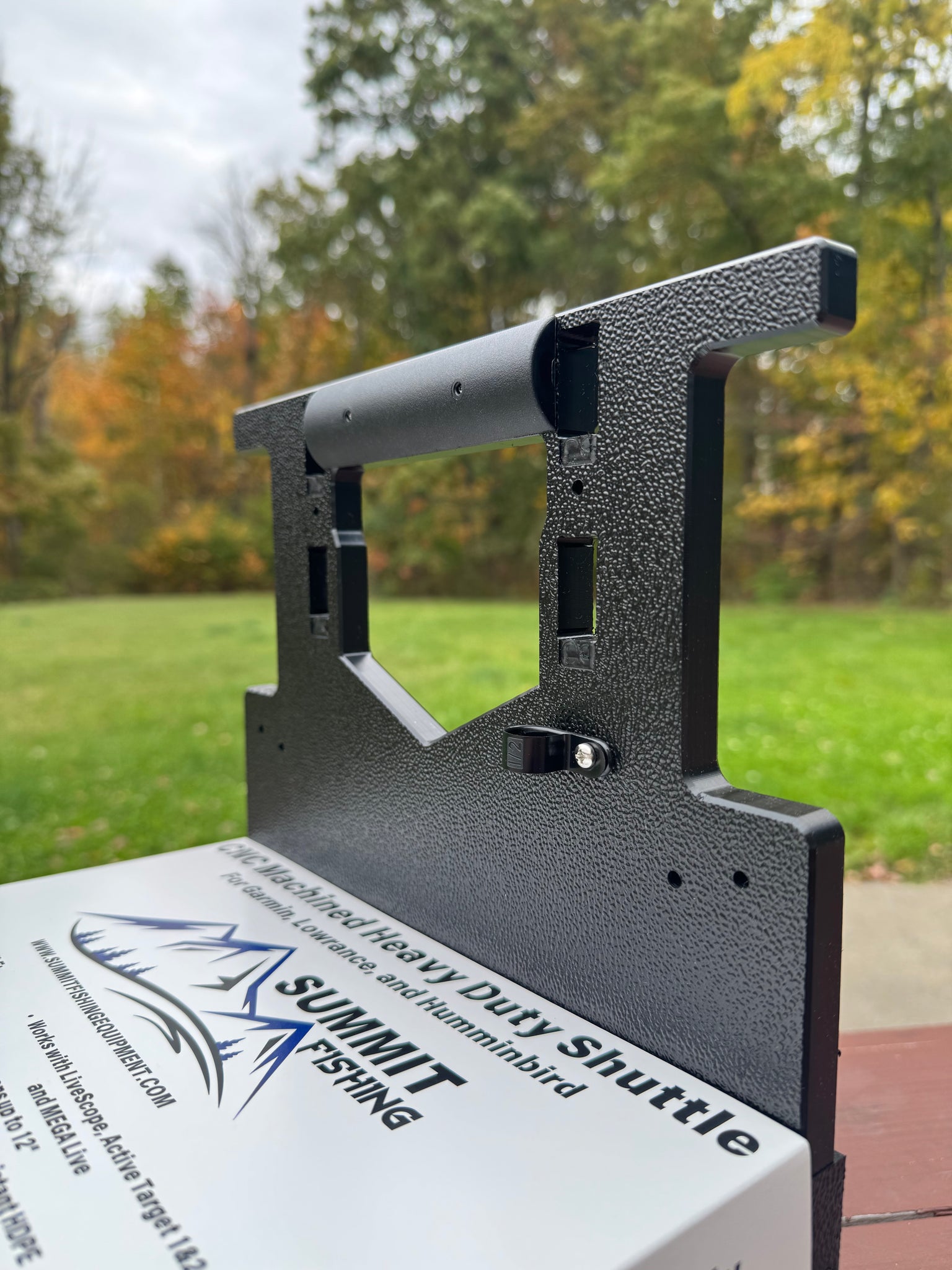

Summit Fishing, the pioneer of forward facing sonar portability, has created the next generation shuttle guaranteed to be the strongest, most versatile, and safest shuttle on the market. This shuttle design is based on the original and best selling Summit Shuttle originally designed in 2019, with numerous revisions made to improve functionality and durability. Precision CNC Machined from billet HDPE, the Heavy Duty shuttle is easily capable of carrying loads in excess of 1,500 lbs which crushed the aluminum shuttles in comparison testing. Weighs less, holds more, and no worries of short circuit arc dangers like the aluminum shuttles. *Pole holder/Light sold separately. Link Below*
_____________________________________________________________
FAQ
-
ONE SHUTTLE FITS ALL BRANDS
-
FITS ALL BRAND SCREENS UP TO 12"
-
WORKS WITH LIVESCOPE, ACTIVE TARGET, MEGA LIVE, OR ANY OTHER SONAR YOU WOULD LIKE TO MOUNT TO THE SHUTTLE.
-
COME FULLY ASSEMBLED AND WIRE HARNESSED WITH TOOLESS QUICK CONNECT.
-
WE DO NOT INSTALL THE HD LIGHT.
-
BATTERY TRAY DIMENSIONS ARE L*W*H: 150*99*131, Inches - 5 7/8 x 3 29/32 x 5 1/8
-
YOU CAN USE THE GARMIN LITHIUM BATTERY BUT YOU WILL NEED TO MOVE THE BATTERY HOLD DOWN BACK. (GARMIN CHARGER WILLNOT CONNECT TO OUR SAE CHARGE PORT)
-
12" SCREEN USE 48AH BATTERY
-
10" 30 OR 32AH
- CONTAINS ALL HARDWARE AND WIRITING TO YOUR ELECTRONICS
Bag Combinations (Bags sold separately)
- ALL SCREEN UP TO 10" INCLUDING 8610 AND 106 - Large Bag
- 12" Screens - XL bag
__________________________________________________________________
Compatible with the following batteries:
BATTERY MAX Dimension: L*W*H: 150*99*131, Inches - 5 7/8 x 3 29/32 x 5 1/8
- Amped Outdoors Dual 7.5/12/15AH, Single 18AH, 20AH, 30AH Wide, 32AH, and 48AH batteries.
- Norsk Dual 7.5/15AH, Single 20AH, 32AH
- Dakota Dual 10AH, 12AH , Single 18AH and 23AH WITH USB.
- Not compatible with Dakota 23 Tall, Marcum MAX30ah or Amped 30 Tall
___________________________________________________________________
- Pole holder shown in pictures sold separately
- Glow Light shown in pictures is sold separately

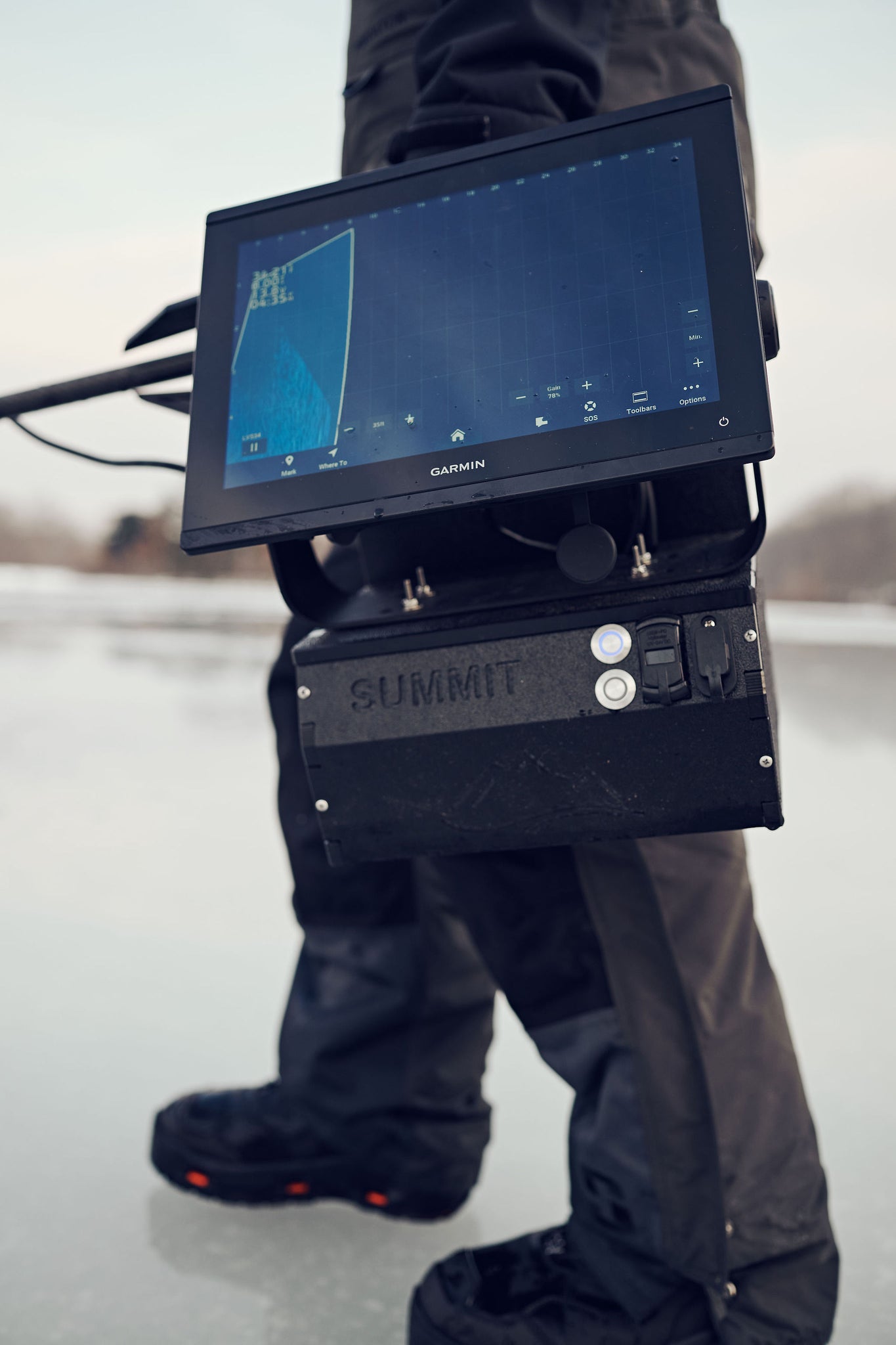

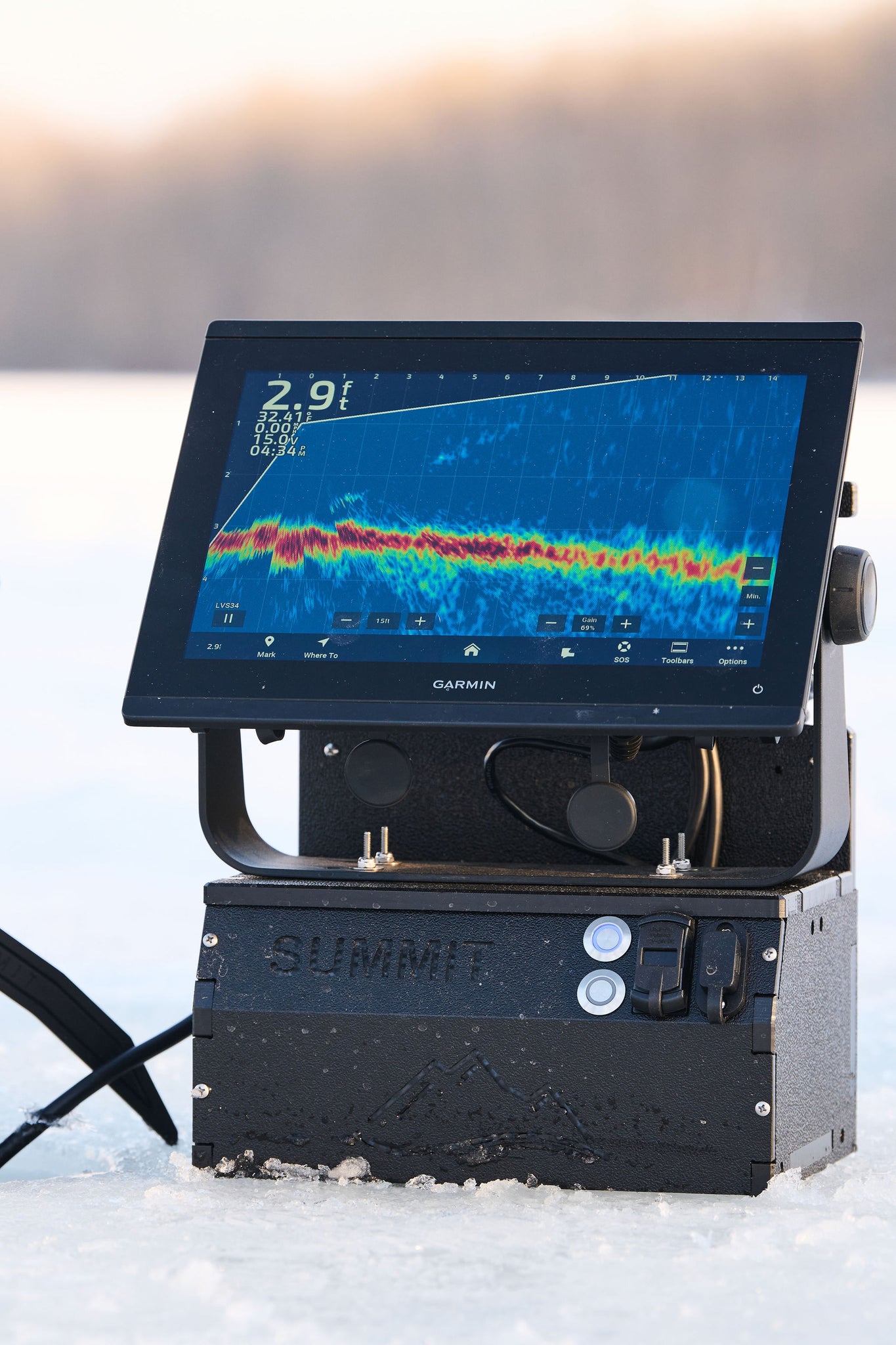

- Chartplotter, transducer, shuttle bag, and transducer pole shown in pictures is not included
