How to Wire Your Boat’s Electronics Without a Rat’s Nest of Cables

You spend thousands of dollars putting together the electronics setup you want. A fish finder, forward-facing sonar, trolling motor, battery, maybe a second graph—and then you look underneath the console and realize you've created a spaghetti bowl of power wires, transducer cables, network cables, connectors, and zip ties.

Besides being frustrating to look at, messy wiring can make your electronics harder to troubleshoot and service. Cables that aren't properly routed or secured can also be exposed to unnecessary movement, rubbing, moisture, or stress at the connections.

The good news is that a clean boat electronics setup doesn't necessarily mean hiding every wire. It means knowing where everything goes, protecting the wiring where it needs protection, and making sure you can still get to everything when something eventually needs to be changed.

Whether you're installing a new fish finder, adding forward-facing sonar, or cleaning up an existing setup, it starts with planning before you run the first cable.

Plan the Complete Electronics System First

One of the easiest ways to create a wiring mess is to install one component at a time without thinking about how everything will eventually work together.

Before drilling holes or pulling wires, take inventory of the complete system. That includes your graphs, forward-facing sonar and any external module it requires, transducers, battery or power source, networking components, switches, fuse or circuit protection, and anything else sharing the same area.

Then think about where those components actually need to live.

Where will your displays be mounted? Where will power come from? If your forward-facing sonar requires a module or black box, where will that go? How will the transducer cable reach the electronics? Which components are permanent, and which ones might need to be removed?

This is also the time to think about future access. An installation can look extremely clean on day one but become frustrating the first time you need to remove a graph or reach a connector.

Leave enough service slack to comfortably disconnect and work on equipment without leaving huge loops of unused cable everywhere. You don't want wiring stretched tight between components, but you also don't want several feet of cable stuffed into the nearest compartment.

The goal is to make the system intentional from the beginning.

Route and Protect Your Wiring

Once you know where everything is going, create logical routes for your cables instead of simply taking the shortest path from one component to another.

Use existing rigging tubes, wire channels, and protected pathways when they're available. If you're running wiring to both the bow and console, for example, think of those as defined routes rather than allowing individual cables to travel randomly through the boat.

It's also important to understand what you're routing. Power cables, transducer cables, network cables, and connections for sonar modules don't necessarily have the same installation requirements.

Don't assume every wire should be bundled together just because it looks cleaner that way. Marine electronics manufacturers provide specific installation recommendations for power, cable routing, and interference, and those instructions should always take priority for your particular equipment.

As you secure the wiring, remember that tighter isn't always better. Cables should be supported well enough that they aren't bouncing, rubbing, or snagging, but zip ties and clamps shouldn't crush the cable or force it into an excessively tight bend.

Pay particular attention anywhere wiring passes through a panel or opening. A cable rubbing against a sharp edge might look fine in the garage, but boats vibrate and bounce. Over time, that movement can turn a seemingly harmless contact point into a damaged cable.

Water deserves the same consideration. Think about where spray can reach, where water may collect, and whether connectors are sitting in places where they'll remain exposed to moisture. Use appropriate marine components where required and periodically inspect connections for corrosion or damage.

A good wiring job needs to work on the water, not just look good while the boat is sitting still.

Make the System Easy to Understand and Service

You'll probably know exactly where every wire goes when you finish the installation. Two years later—after adding another graph, changing a battery, or upgrading your sonar—that may be a different story.

Label the important connections.

You don't need a tag every six inches, but identifying things like the bow graph, console graph, sonar module, forward-facing sonar, and accessory power can save a lot of time when you're troubleshooting later.

The same goes for excess cable. Some factory cables, particularly transducer cables, shouldn't simply be cut shorter unless the manufacturer specifically permits it. If you have extra length, organize and secure it according to the manufacturer's recommendations rather than stuffing it into an empty compartment.

Connectors should also remain accessible and supported. Avoid installations where the weight of a cable is constantly pulling against a connection or where you need to remove half the boat's interior just to unplug a graph.

Once everything is installed and working, take pictures before closing up panels and compartments. Photograph your battery connections, fuse locations, major cable routes, sonar module connections, labels, and anything else you may want to reference later.

It takes a few minutes and can save a surprising amount of time the next time you change something.

Power Your Electronics Correctly

Cable organization gets a lot of attention because it's easy to see, but clean wiring is also about getting power to your electronics correctly.

Follow the manufacturer's requirements for wire gauge, circuit protection, fuse size, connections, and any recommendations regarding cable extensions or maximum lengths. Don't choose wire or replace a fuse based on whatever happens to be sitting in the garage.

If a fuse repeatedly blows, installing a larger one isn't the solution. Find out why it's happening.

The same applies when electronics begin shutting down, resetting, showing unexpected voltage drops, or behaving inconsistently. It's easy to assume there's something wrong with the graph, but the power and wiring system should be part of the troubleshooting process.

Anglers also frequently ask whether their electronics should be wired directly to the battery. There isn't one wiring configuration that's appropriate for every boat and every electronics setup. Your equipment, electrical system, wiring length, circuit protection, and manufacturer recommendations all matter.

For high-performance marine electronics, good power delivery is just as important as having the cables neatly organized.

Forward-Facing Sonar Adds Another Layer

Forward-facing sonar can make a boat's electronics considerably more capable, but depending on the system you're using, it can also add more hardware and wiring.

In addition to the graph and transducer, you may have an external sonar module, dedicated power, network connections, mounting hardware, and a transducer pole. If you want the system to be portable, all of those components also need to move together in a way that makes sense.

The transducer pole introduces its own cable-management consideration because the pole needs to rotate while you're scanning.

You need enough slack for the transducer cable to move freely through the range you'll actually use, but not so much loose cable that it becomes a snagging or tripping hazard on the deck.

Once the pole is installed, rotate it through its full usable range and watch the cable. Make sure it isn't pulling against the connector, twisting excessively, catching another component, or wrapping around the mount.

Then think about what happens when you're not fishing.

Where will the pole and transducer sit while you're running across the lake? What happens to the cable when the pole is stored? A setup that is perfectly organized while the transducer is in the water shouldn't turn into loose cable and equipment bouncing around the deck every time you move spots.

This is one of those details that's much easier to solve in the garage than on the water.

Sometimes Portability Is the Cleaner Solution

There's a tendency to assume the cleanest electronics installation is one where everything is permanently mounted and every cable disappears somewhere inside the boat.

For some anglers, that's exactly the right approach.

For others, keeping the electronics together as one portable system can actually simplify things.

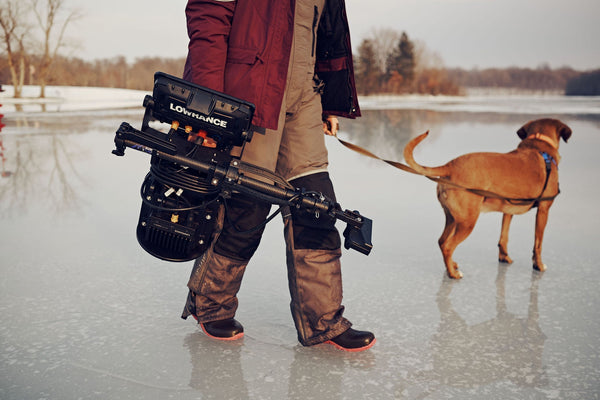

A sonar shuttle can keep the graph, battery, wiring, and sonar module—when the system requires one—together instead of permanently installing those components in different areas of the boat. Pair that with an independent transducer pole and a secure boat mounting system, and much of the complexity stays contained within the portable setup.

That can make a lot of sense if you fish from multiple boats, move your electronics between open water and ice, want to remove expensive electronics when the boat isn't being used, or simply don't want to permanently modify your boat.

Track-mounted accessories can offer another option. If your boat already has a compatible track system, mounting the shuttle or transducer pole to the track can give you flexibility without adding permanent mounting locations every time your setup changes.

That's a big part of how we think about product development at Summit Fishing Equipment. Portability isn't just about being able to carry your sonar from one place to another. The graph, battery, wiring, transducer pole, and mounting system should work together so you're not rebuilding your electronics setup every time you move it.

Leave Yourself Room to Change the Setup

Most anglers have probably said some version of, "This is my final electronics setup."

Then another graph comes along. Or a new generation of forward-facing sonar. Or a different transducer. Or one more accessory that suddenly feels necessary.

When you're wiring your boat, don't pack every cable route and mounting location so tightly that there's no room to make a change later.

You don't need to build the boat around equipment you don't own yet. Just avoid creating an installation where one upgrade means tearing everything apart and starting over.

A clean setup should be organized enough to use today and flexible enough to service or change tomorrow.

Clean Wiring Makes Your Electronics Easier to Live With

You don't need every cable hidden from sight to have a good electronics installation.

Plan where everything will go before you start. Follow the manufacturer's wiring and power requirements. Protect cables from movement, sharp edges, and unnecessary moisture exposure. Keep important connections accessible, label what isn't obvious, and leave enough room to service the equipment later.

And if permanently wiring an increasingly complicated forward-facing sonar system into one boat doesn't fit the way you fish, consider whether a portable setup makes more sense.

At Summit Fishing Equipment, we build sonar shuttles, transducer poles, boat mounts, track-mounting solutions, and other components around that idea: keeping forward-facing sonar organized, portable, and easier to use.

Because the goal isn't to spend Saturday morning underneath the console tracing wires.

It's to turn on your electronics and go fishing.
