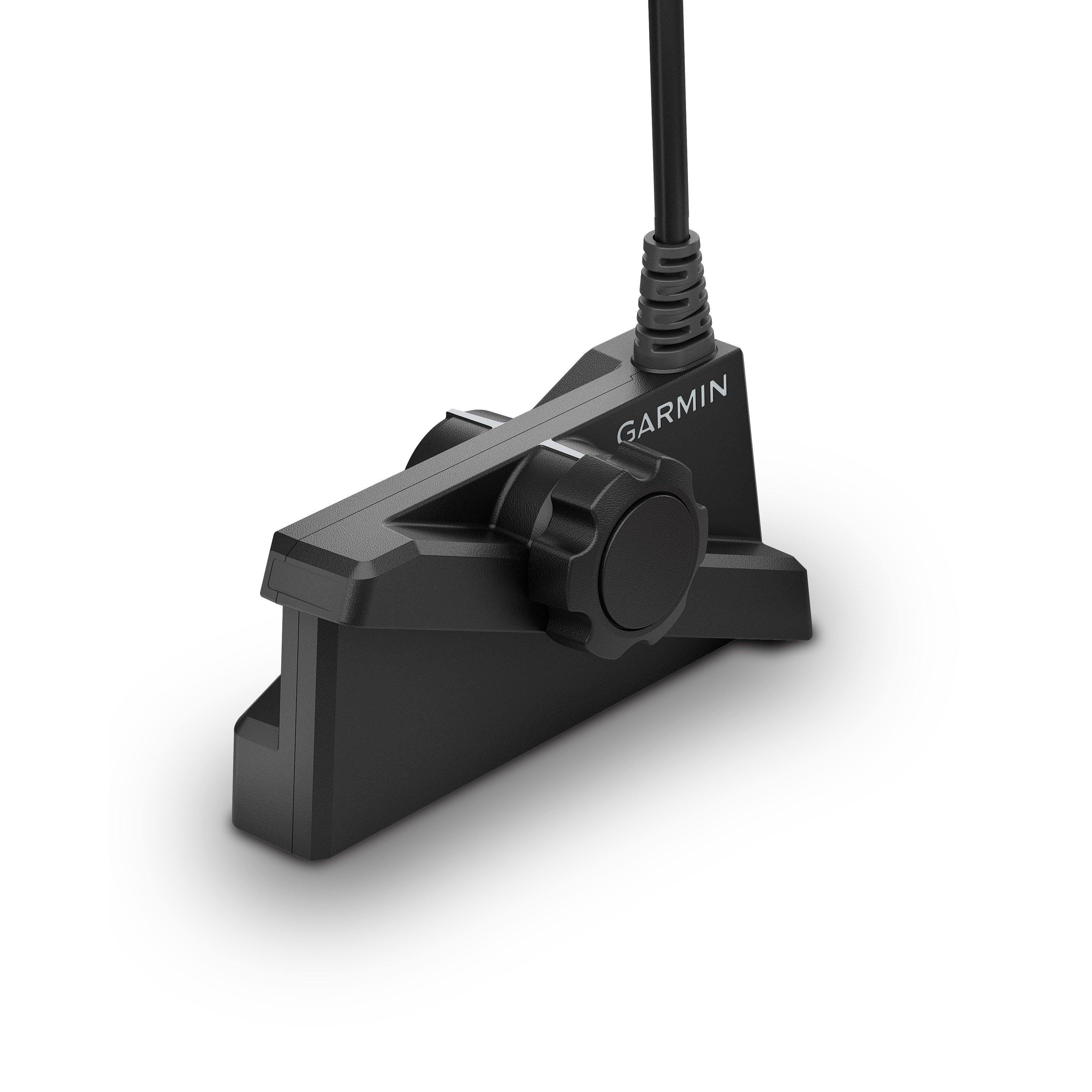

Garmin LVS34 Transducer for Panoptix Livescop Plus
Model: 010-02706-10- See images clearly with improved screen clarity, transducer sensitivity and target separation.
- Scan surroundings with sharper images, reduced noise and fewer sonar artifacts.
- Upgrade your current LiveScope System black box (GLSTM 10 sonar module) with just a new transducer.
- Get maximum contrast and clarity in your images with vivid color palettes.
- Don't miss a thing with supported Forward, Down and Perspective modes and necessary mount.
The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.
REAL-TIME IMAGES - Real-time sonar ensures that your live images are as accurate as possible
CLEAR VISION - See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure.
IMAGE STABILIZATION - A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.
VIVID COLOR PALETTES - Choose from seven vivid color options - including Aqua, Caribbean, Lava and more - to see fish and structure in maximum contrast and clarity.
Specifications| 6.4 in x 3.1 in x 1.9 in (16.2 x 3.1 x 4.8 cm) | |
| WEIGHT | 2.25 lbs (1.02 kg) |
| WATERPROOF | WATERPROOF |
| WATERPROOF | Operating: 0 C to 40 C |
| Sonar Features & Specifications | |
| FREQUENCY | 530 - 1,100 kHz |
| MAXDEPTH | Down and Forward: 200 feet (61.0 m) |
| Connections | |
| CONNECTIONS GARMIN MARINE NETWORK PORTS | 1 (small connector) |
| Electrical Features | |
| POWER INPUT | 10-32 V |
| POWER USAGE | 21 W typical, 58 W max |
| TRANSMIT POWER | 500 W |
| FUSE | 7.5 A |
| COMPASS-SAFE DISTANCE | 4 (0.1 m) |
| Additional | |
| Minimum depth | 3 feet (0.91 m) |
| Sonar type | Live |
| Beamwidth | 20 deg x 135 deg |
| Transducer cable length | 20 ft |
| Transducer number of pins | 21 |
What's in the Box:
- Panoptix LVS34 transducer
- Perspective mount
- Trolling motor barrel mount
- Trolling motor barrel mount
- Documentation "
