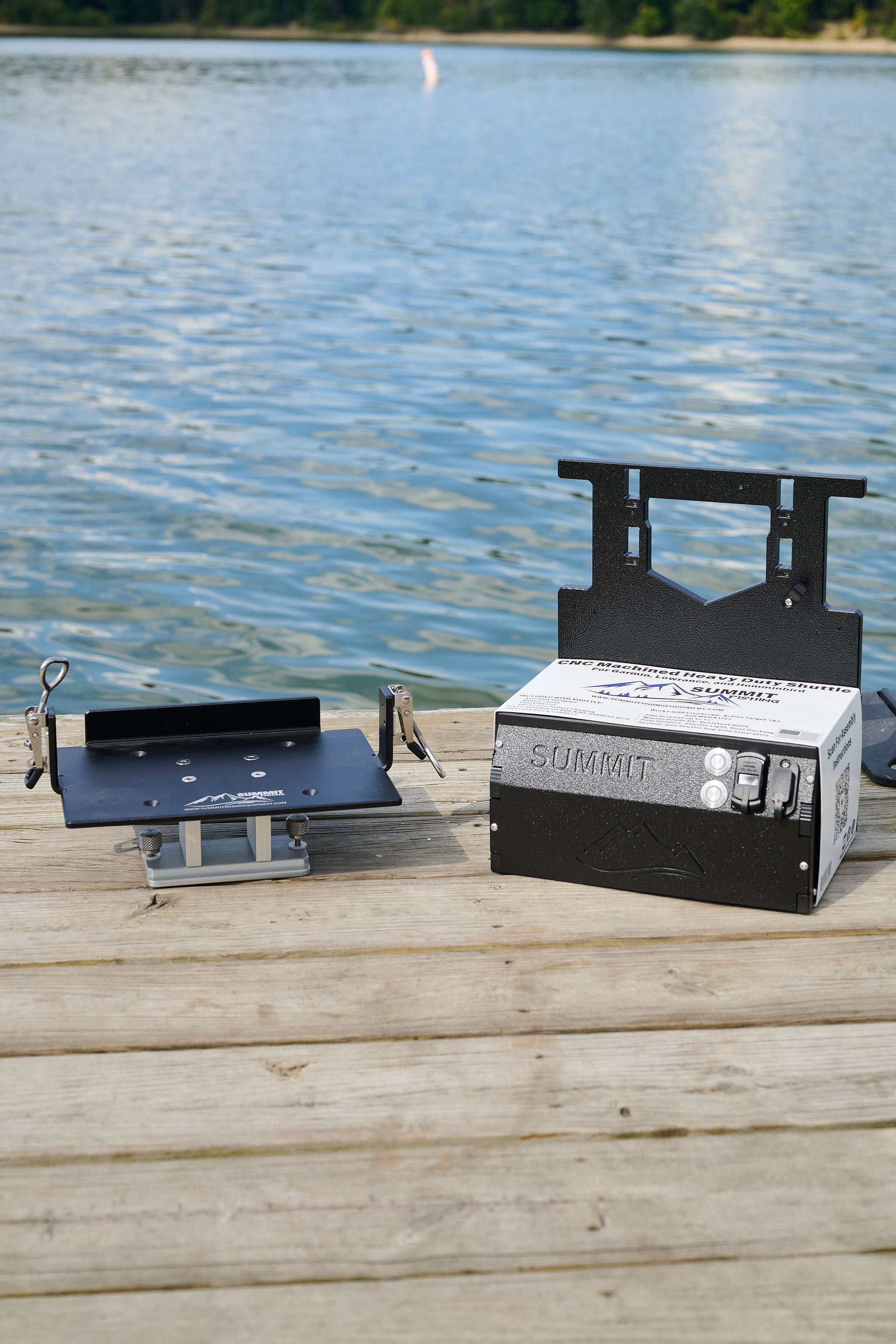

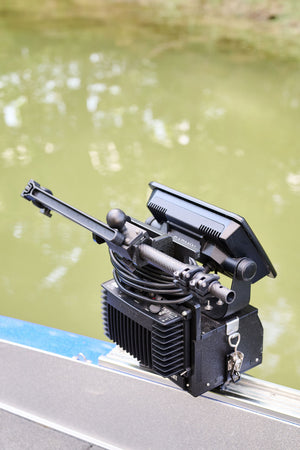

Summit HD Shuttle Docking System

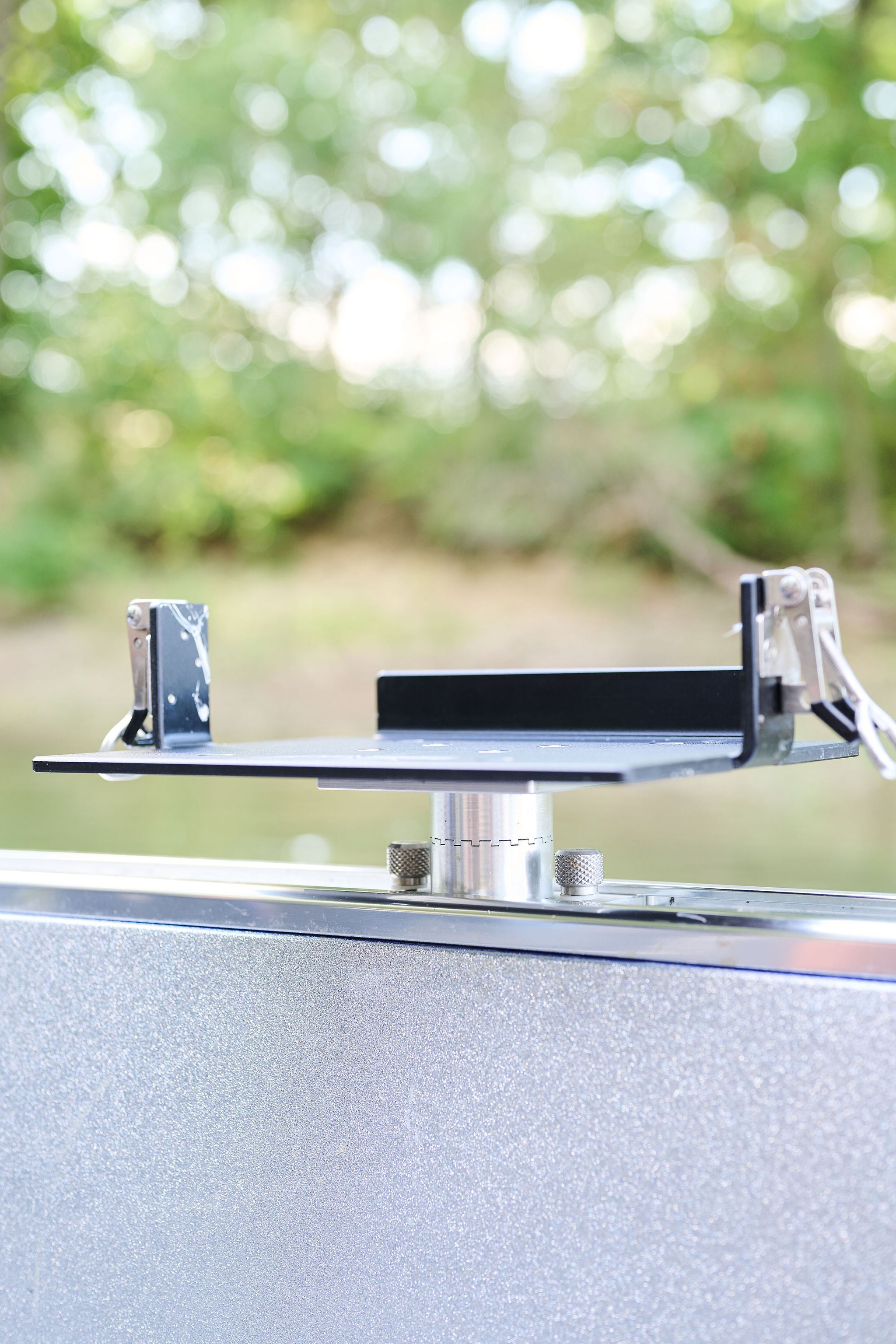

The Summit HD Shuttle Dock allows you to safely and securely mount your Summit shuttle to various surfaces. Made from 1/4" aluminum and featuring a full stainless latch and lock system, it includes two pre-drilled mounting patterns. HD shuttle inserts are included. We are proud to offer the Larmac 360 rotating track mount assembly, as well as pre-drilled holes for the Attwood seat base (Attwood SWIVL-EZE LakeSport 2-3/8" Seat Mount w/Friction Control 818440). Our custom upper latch hooks pull straight down on the top of the shuttle, while the lower 550lb-rated latches lock securely, engineered to withstand the toughest conditions.
Mounting Patterns:
- Larmac: 4 - 1/4" 82° countersunk holes, 1 3/4"x 2 1/4"
- Attwood: 4 - 5/16" 82° countersunk holes, 5"x5"

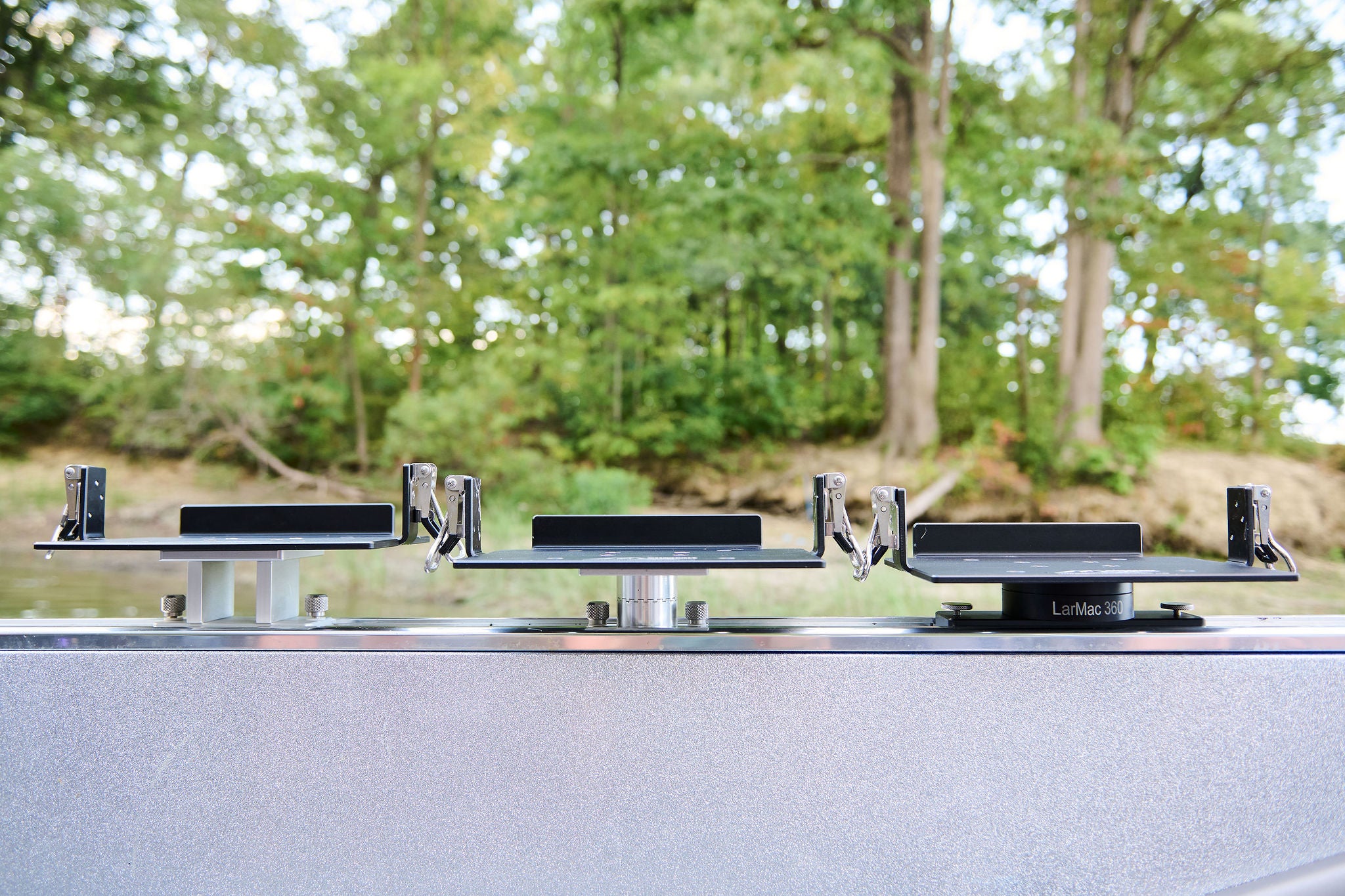

The Larmac 360 and Cisco Fishing Systems 360 allows for 360-degree rotation while mounting the Summit shuttle dock to a 3" track system (Traxtech, Berts, Cisco).
Cisco Stationary Track Mount Does NOT Rotate
Included with "Docking Plate System ONLY":
- Docking plate
- Side latches
- Upper latch hooks
- Shuttle installation hardware

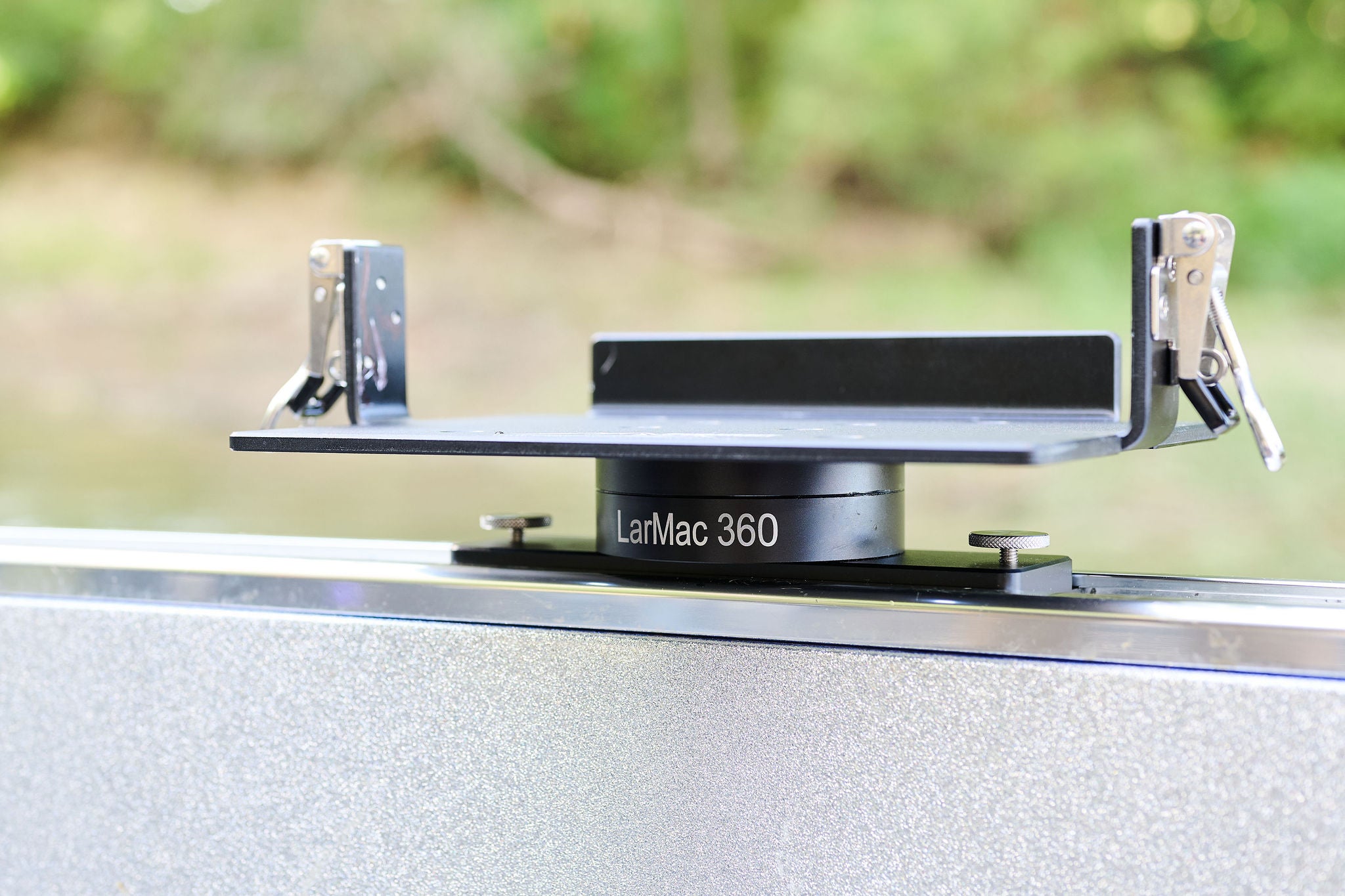

Included with "Docking Plate System WITH Larmac360":
- Docking plate
- Side latches
- Upper latch hooks
- Shuttle installation hardware
- Larmac360 mount and Larmac mounting hardware
- Base of the Mount is 8" Long
- 2" Tall
Included with "Docking Plate System WITH Cisco 360 Indexing Track Mount":
- Docking plate
- Side latches
- Upper latch hooks
- Shuttle installation hardware
- Cisco Fishing Systems 360 Indexing 3" Track Mount
- Base of the Mount is 4" Long
- 5" Inches Tall

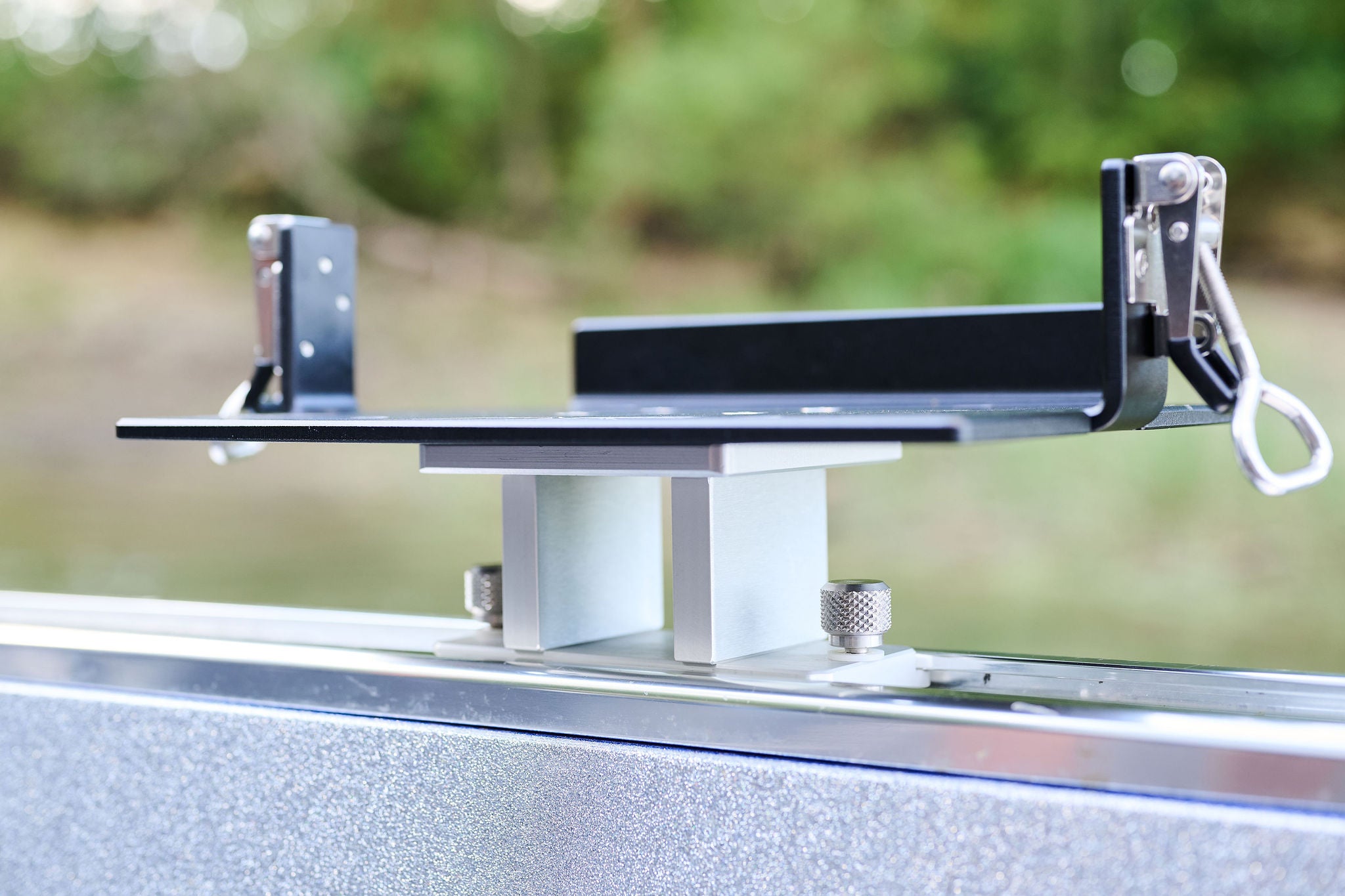

Included with "Docking Plate System WITH Cisco Stationary Track Mount":
CFS Stationary Track Mount Does NOT Rotate
- Docking plate
- Side latches
- Upper latch hooks
- Shuttle installation hardware
- Cisco Fishing Systems Stationary 3" Track Mount
- Base of the Mount is 5.25" Long
- 3" Tall
Note:
- Some assembly required: How to Hook Up Your Summit Docking System to Your Summit Shuttle
- Only items listed in the description are included
- HD Shuttle sold separately
- Mounting track not included
- Latch padlocks not included but recommended

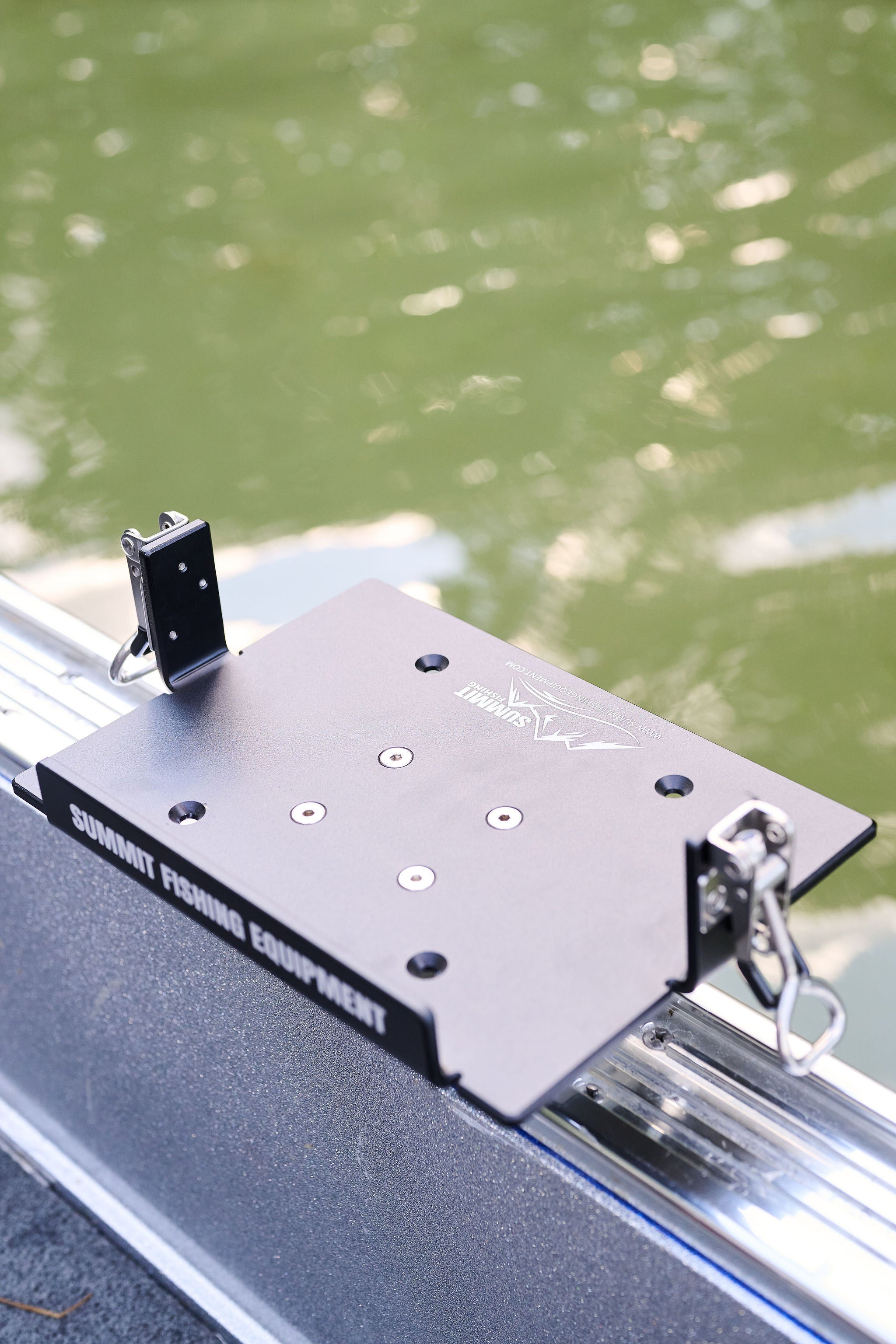

- Docking Plate Dimensions are: LxW 10.5x7.5
