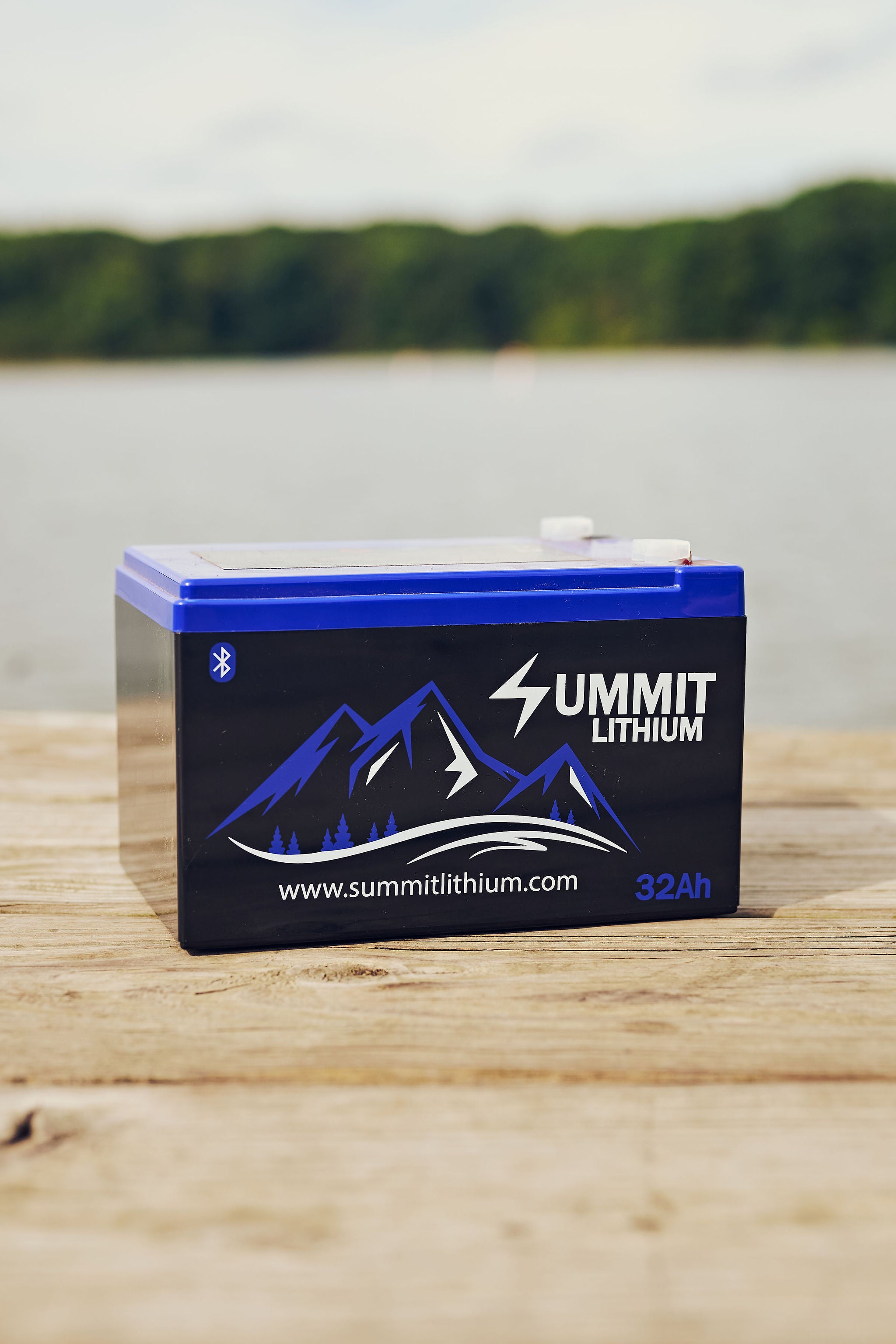

32AH NMC Lithium ION Battery With Charger and Bluetooth
Shipping calculated at checkout
In stock
Overview
The Summit Lithium 14.8 Volt 32Ah NMC Battery is the sweet spot for most forward-facing sonar setups. It offers excellent runtime, reliable cold-weather performance, and the power overhead needed for 9–10" screens without stressing the battery. The 32Ah is the workhorse of the lineup — strong, stable, and built for anglers who fish long hours but want a to save weight over the 52ah battery.
Industry leading Battery Management Platform
Core Features:
- Real-Time Performance Monitoring
- State of Charge (SOC) accuracy to 99.5%
- Individual cell voltage tracking (±0.01V)
Multi-zone temperature profiling
- Advanced Protection Systems
- Instantaneous over/under voltage response
- Microsecond short-circuit interruption
- Multi-point thermal management
Active Cell Balancing
- Continuous voltage synchronization
- Prevention of cell degradation during cycles
- Enhanced energy preservation
Key Features:
- All-day power for mid-size sonar bundles
- High-stability 14.8V output for crisp FFS imaging
- Excellent cold-weather performance
- Bluetooth App support — check charge, health, cycles
- Lightweight at 4.92 lbs
- NMC chemistry with high energy density
- Fast 6A charging included
- SAE harness in the box
- Integrated BMS for safety and reliability
Ideal For:
- Fits best inside the Summit Shuttle but is compatible with most popular brands. Summit Fishing, HD Innovations, ArcLab, Fin Gear, Fish Armor, Ice Master Fishing, TKI, BassKhang, Vexilar, etc.
- 9–10" screens
- All portable shuttles
- All-day ice fishing
- Tournament scouting
Technical Specs:
- Model: 3204
- Voltage: 14.8V nominal
- Peak Voltage: 16.8V
- Capacity: 32Ah
- Max Continuous Discharge: 15A
- Weight: 4.92 lbs
- Chemistry: Lithium NMC
- Bluetooth App: Yes
- Certification: UN38.3
- Dimensions: 5 7/8" x 3 7/8" x 3 5/8"
- Weight: 4.8 lbs
What’s Included:
- 32Ah Summit Lithium Battery
- 6A Fast Charger
- SAE Quick-Connect Harness
Safety Notes:
- Charge only with included charger
- Do not charge below 32°F
- Keep away from water or moisture
- Do not expose above 158°F
- Do not open, modify, or short-circuit
- Do not wire in series
- Do not use for permanent on-board/boat installs
WARNING: Lithium-ion batteries and/or products that contain lithium-ion batteries can expose you to chemicals including cobalt lithium nickel oxide, and nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Why Summit
Built for portability. Backed by a 2-year warranty. Supported by real people who use this gear every day.
Don’t run half a setup
Pair your gear the right way the first time. Our mounts, poles, and shuttles are built to work together—so you’re not piecing things together on the water.
I was on Lake Erie this past week, well 4 days
This battery ran my eagle eye 9 for 3 long days and was down to 33% got nervous for the 4th day so put a charge on it very impressive!!!!!!
Working great good info from blue tooth
last a long time 18 or 19 hrs 10 inch garmin
Overall I’m pretty happy with the shuttle and the materials used to build it. I’m slightly disappointed that simple things like nuts used the hold the side latches weren’t already pressed in. I would have liked to seen pressed in nuts for the bolts that hold the black box and the screen mount as well,…. Then the deal about needing to cut wires and reroute wires seemed bad to me. I would have thought the Garmin wiring harness, that I paid extra for, would have been plug and play,.. but I was wrong.
Having said that, I’d buy the Summit Shuttle again if I was in the market.
Great battery. Have gone out for several hours with my LVS32 and 106SV and still hasn’t ran below 70% life. App is user friendly and well made.
I haven’t used it yet, but what I can tell about it’s a pretty good battery

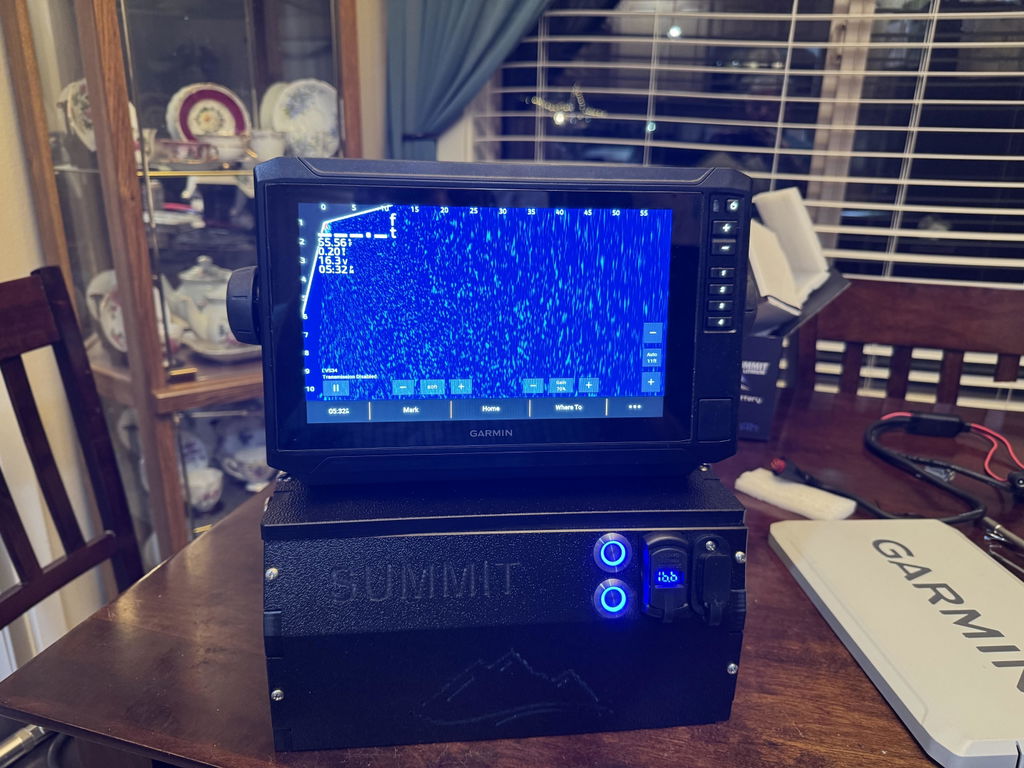

I purchased the Summit 32 AH Lithium Battery and charger (connects through Bluetooth to app) for my Garmin live scope. I used it for a good 8 hours this weekend and it performs great. Charger seems to work well and it’s nice you can check the 4 battery cells remaining power on the app. I recommend this battery for your sonar system.
Just getting around to using it but everything is working great.
Works perfectly in the shuttle lasts the whole day and I’m sure even longer. Bought the charger too.
Im happy with the purchase. Performing as it stated.
Have not yet had it on the lake but all seems fine
Awesome product ! I highly recommend this if you’re getting into FFS !
All it said it was. Fast shipping
Great all around size. Charges quickly.
Great product
Great product would highly recommend
Fast charging and only dropped 1 amp from a day of fishing
Very nice stuff
