Overview

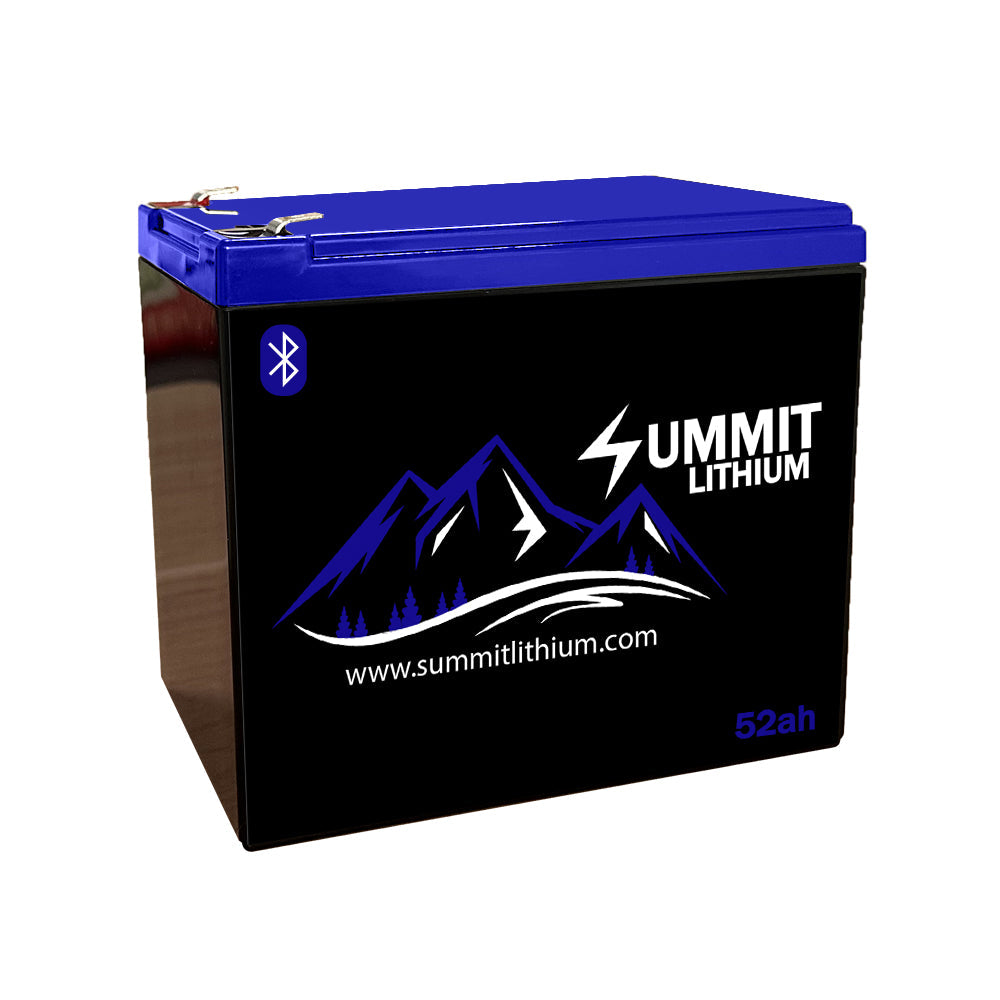

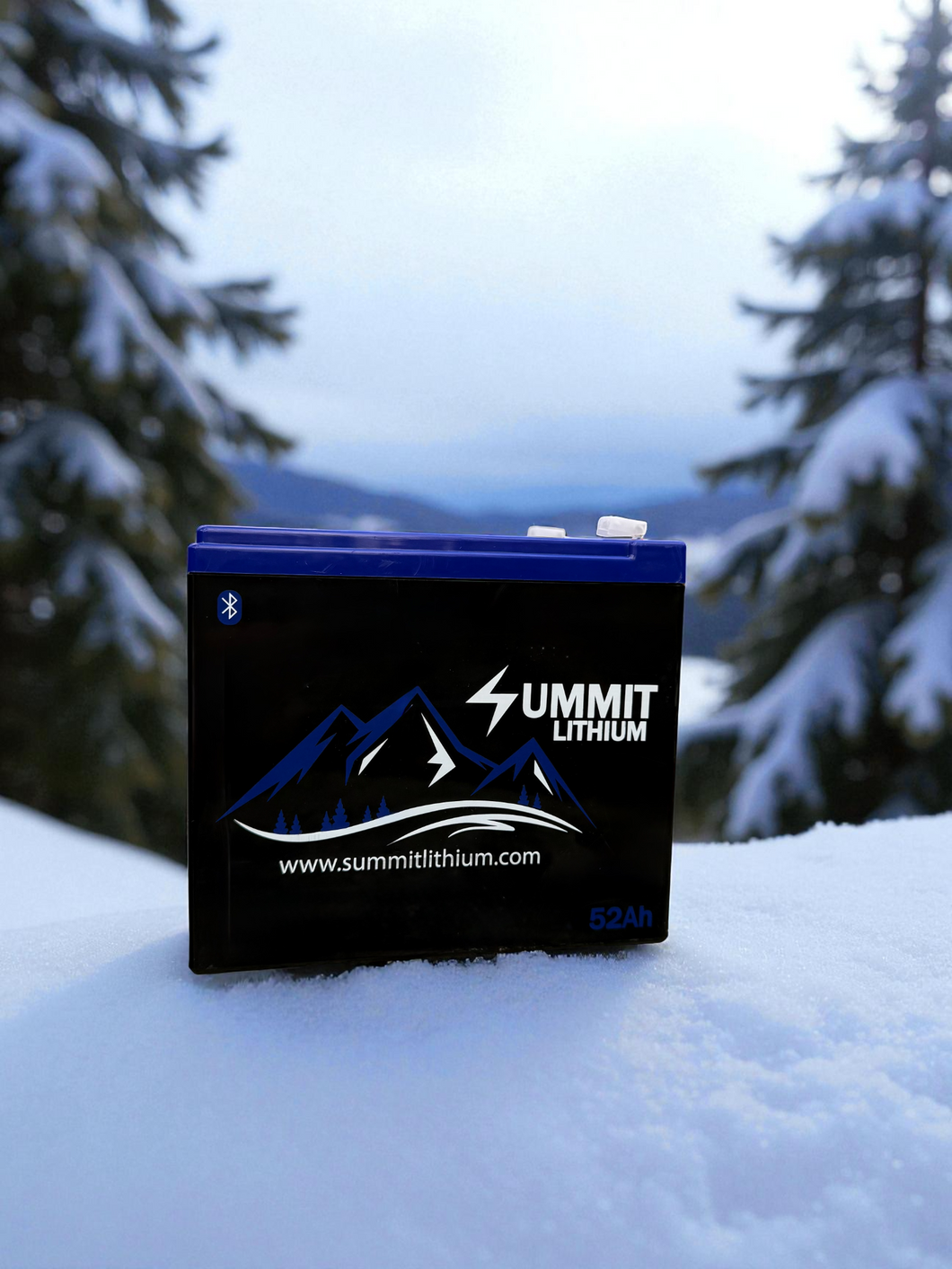

The Summit Lithium 14.8 Volt 52Ah NMC Battery is the top-end power option for anglers running heavy sonar loads, 10–12" screens, Live Imaging + mapping combos, or long tournament days. It delivers serious runtime, rock-solid voltage stability, and performance in temperatures that shut other batteries down. If you fish long, push your equipment, or run multiple electronics off one battery — this is the one to choose.
Industry leading Battery Management Platform
Core Features:
- Real-Time Performance Monitoring
- State of Charge (SOC) accuracy to 99.5%
- Individual cell voltage tracking (±0.01V)
Multi-zone temperature profiling
- Advanced Protection Systems
- Instantaneous over/under voltage response
- Microsecond short-circuit interruption
- Multi-point thermal management
Active Cell Balancing
- Continuous voltage synchronization
- Prevention of cell degradation during cycles
- Enhanced energy preservation
Key Features:

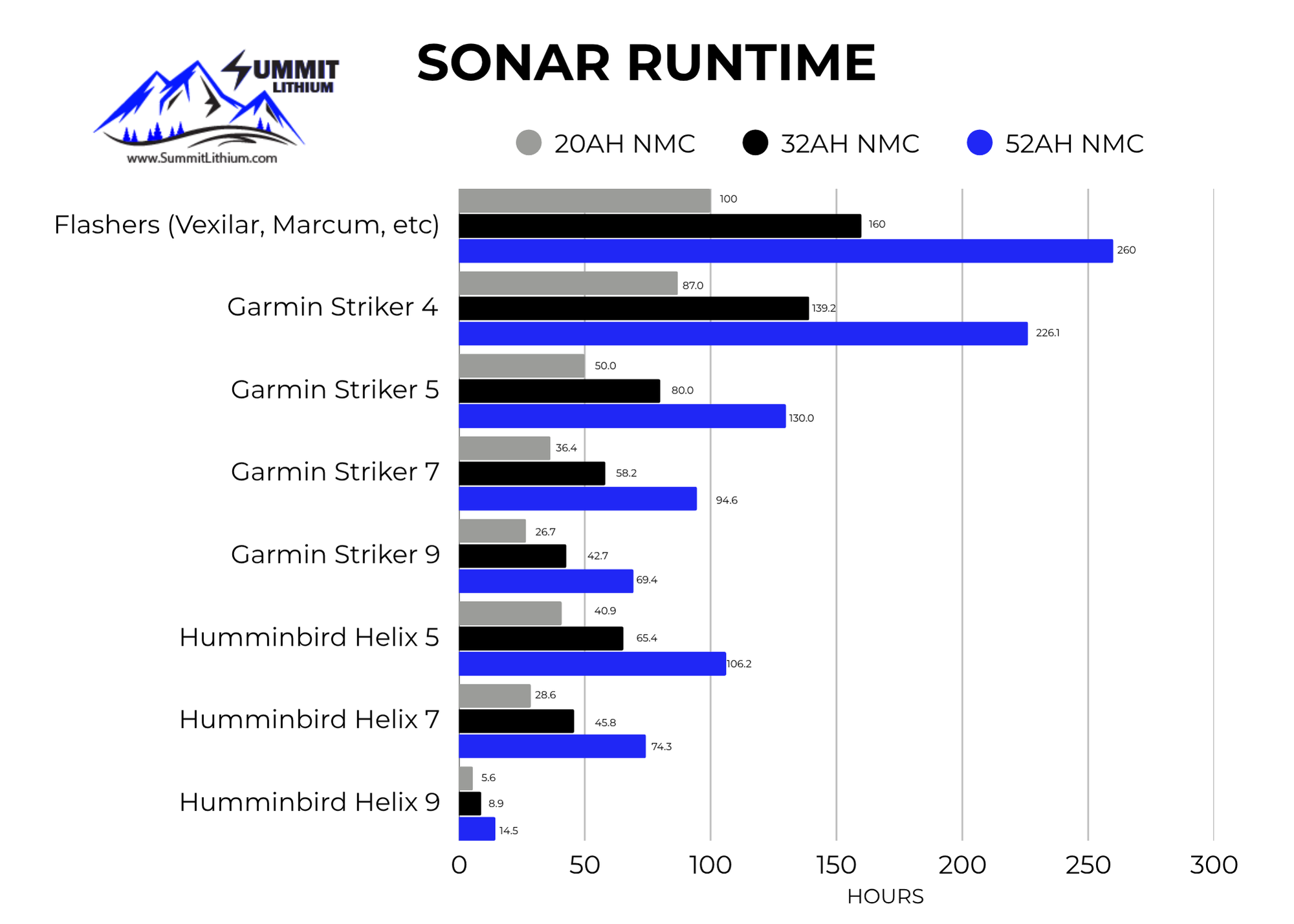

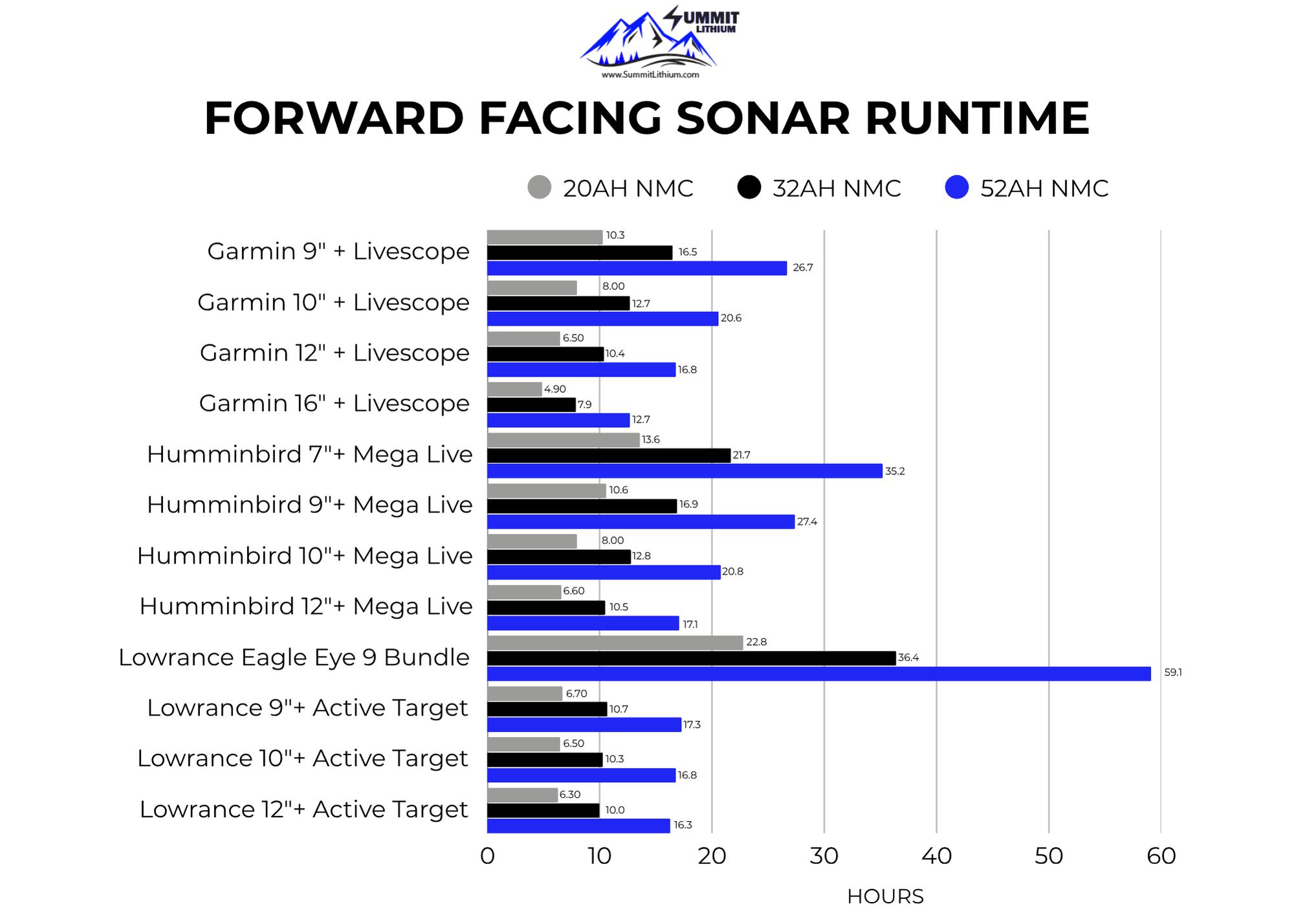

- Maximum runtime for any sonar bundle
- Rock-steady 14.8V output

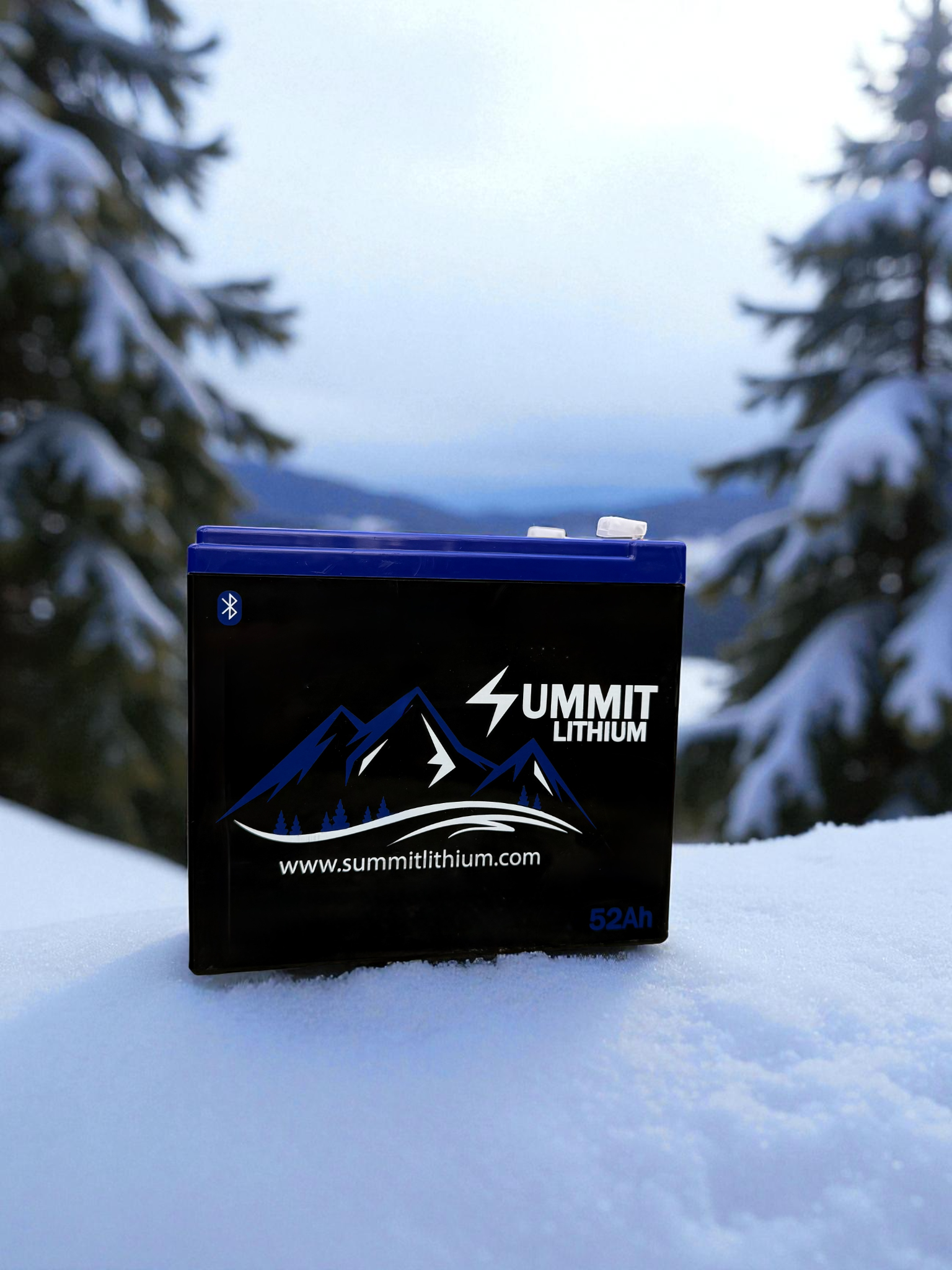

- Outstanding cold-weather performance
- Bluetooth App monitoring
- Huge 52Ah capacity
- Fast charging with included 6A charger
- NMC chemistry for long cycle life and high power density
- Ideal for 10–12" screens and heavier loads
- Integrated BMS with full protection
Ideal For:
- Fits best inside the Summit Shuttle but is compatible with most popular brands. Summit Fishing, HD Innovations, ArcLab, Fin Gear, Fish Armor, Ice Master Fishing, TKI, BassKhang, Vexilar, etc.
- 10–12" screens
- Weekend-long trips
- Tournament anglers
- Anyone who demands the longest runtime possible

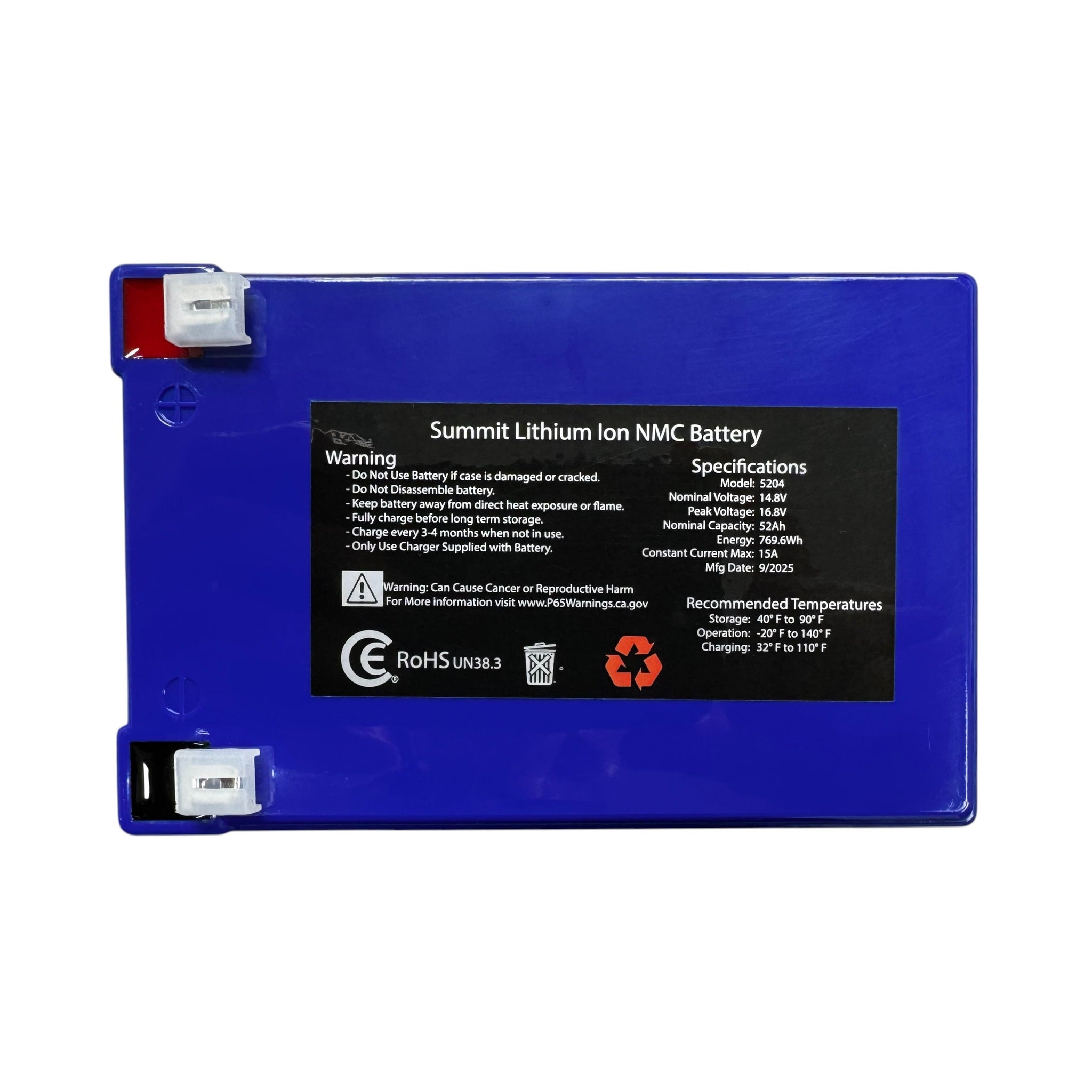

Technical Specs:
- Model: 5204
- Voltage: 14.8V nominal
- Peak Voltage: 16.8V
- Capacity: 52Ah
- Max Continuous Discharge: 15A
- Weight: 6.95 lbs
- Chemistry: Lithium NMC
- Bluetooth App: Yes
- Certification: UN38.3
- Dimensions: 5 7/8" x 3 7/8" x 5 1/8"
- Weight: 6.7 lbs
What’s Included:
- 52Ah Summit Lithium Battery
- 6A Fast Charger
- SAE Quick-Connect Harness
Safety Notes:
- Charge only with included charger
- Do not charge below 32°F
- Keep away from water or moisture
- Do not expose above 158°F
- Do not open, modify, or short-circuit
WARNING: Lithium-ion batteries and/or products that contain lithium-ion batteries can expose you to chemicals including cobalt lithium nickel oxide, and nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
