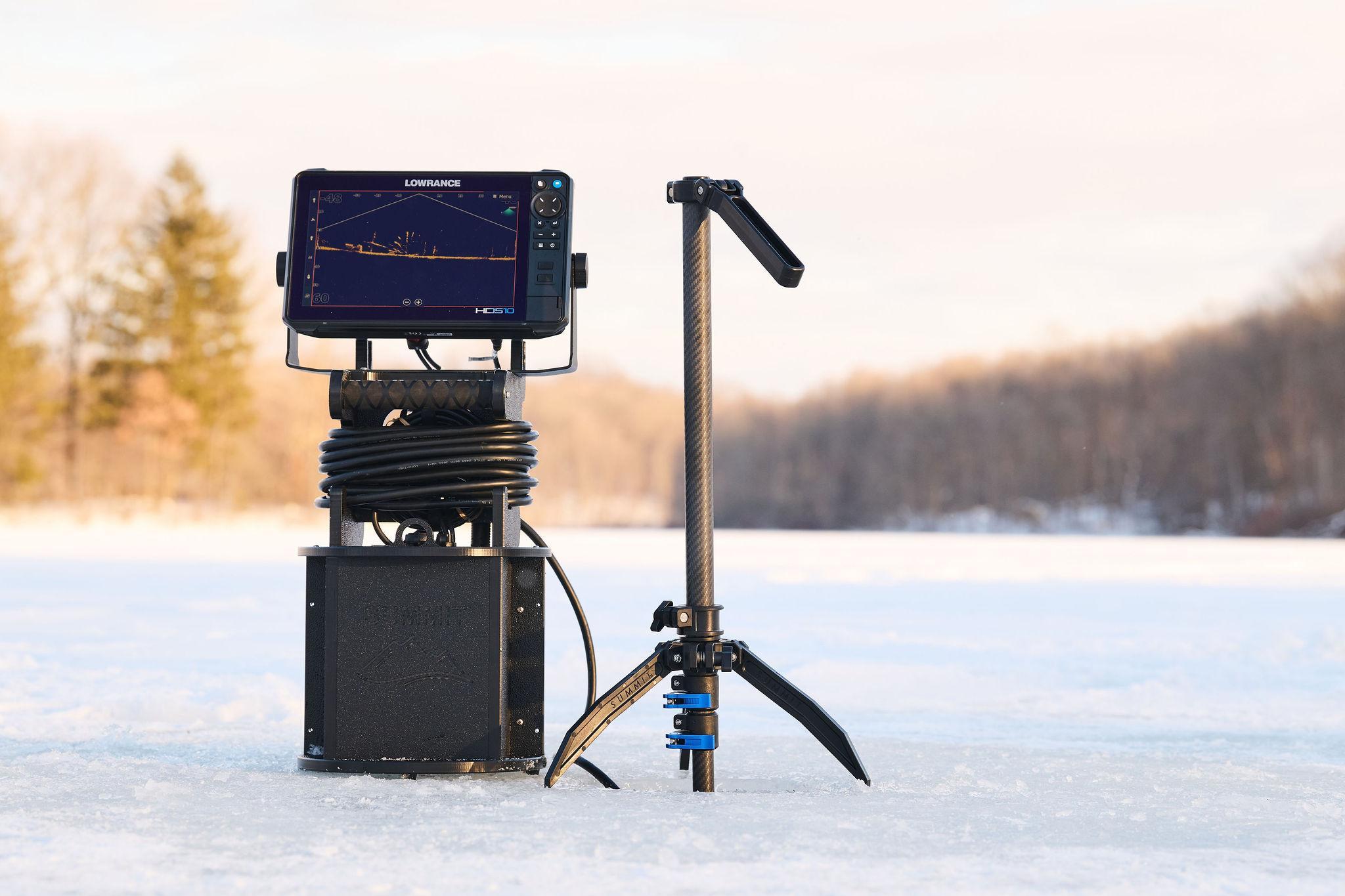

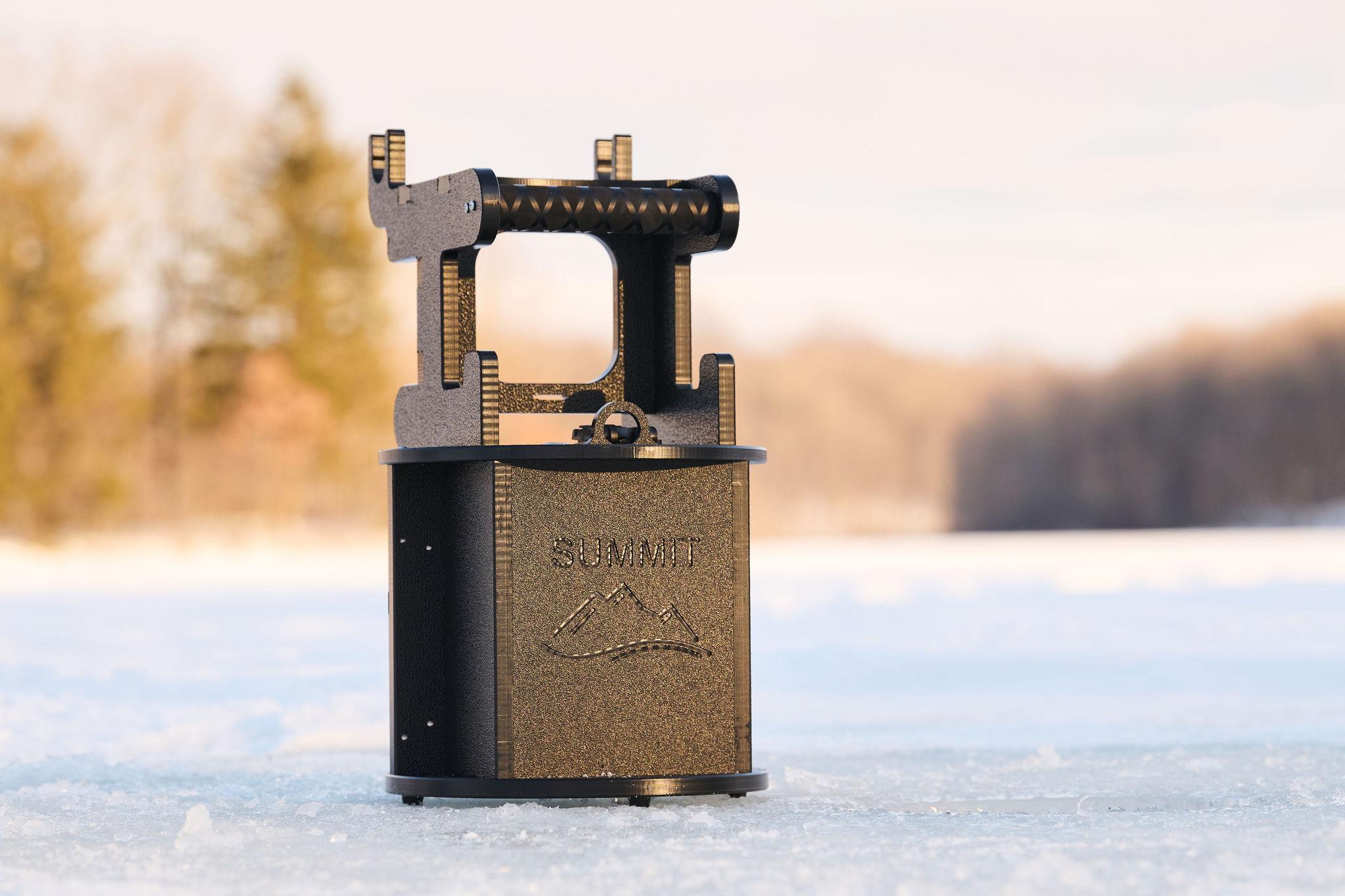

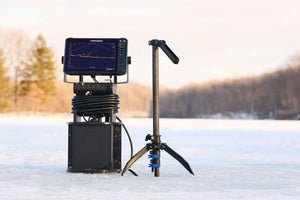

The Summit Fishing Equipment Tallboy Shuttle
Proudly Made in the USA — from Start to Finish
Cut, assembled, and engineered in the USA using American-made materials and machinery, the Summit Bucket Shuttle is built for anglers who demand premium performance and durability. Designed to thrive in the toughest ice fishing environments.
Purpose-Built for Serious Ice Anglers

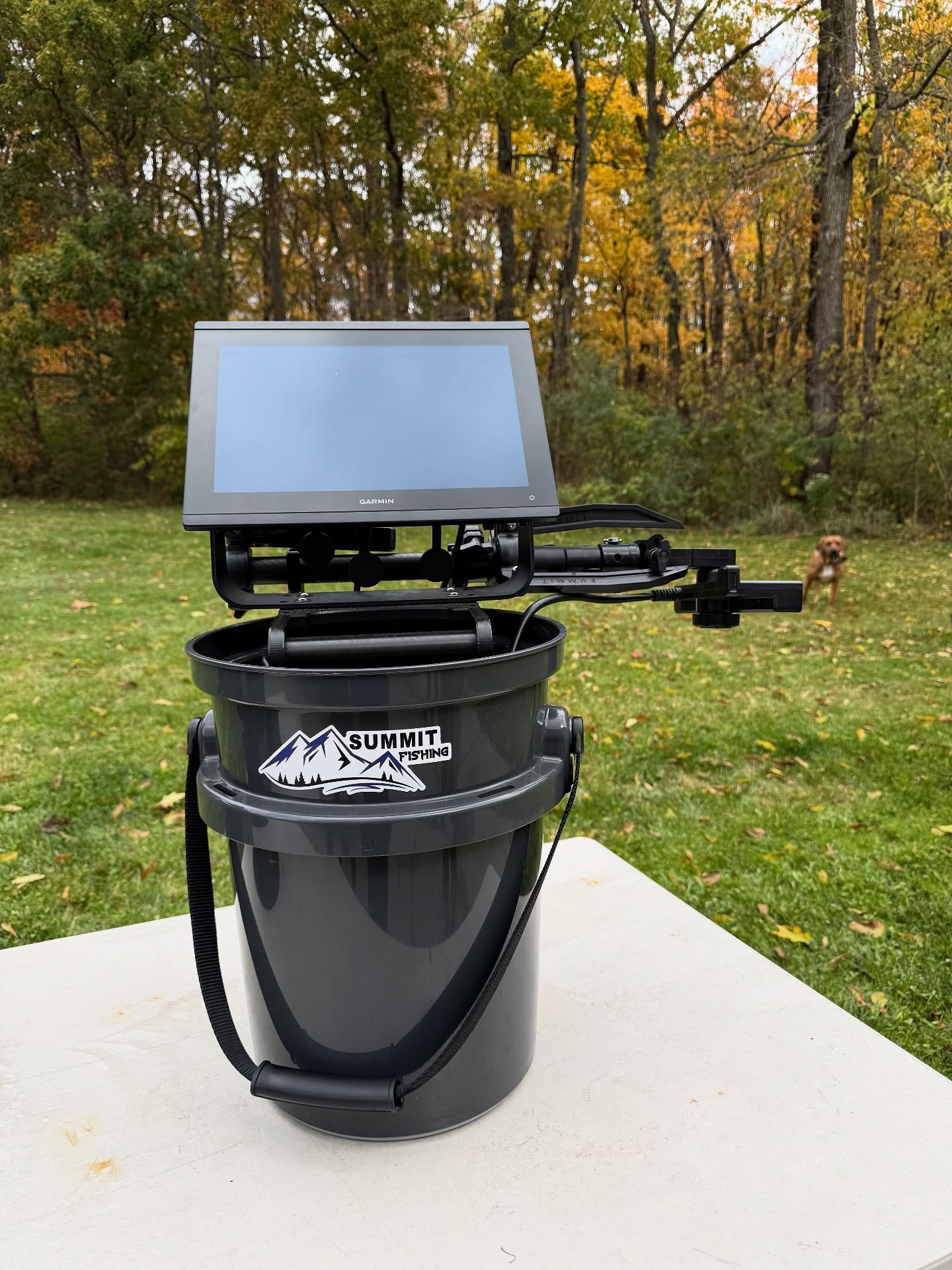

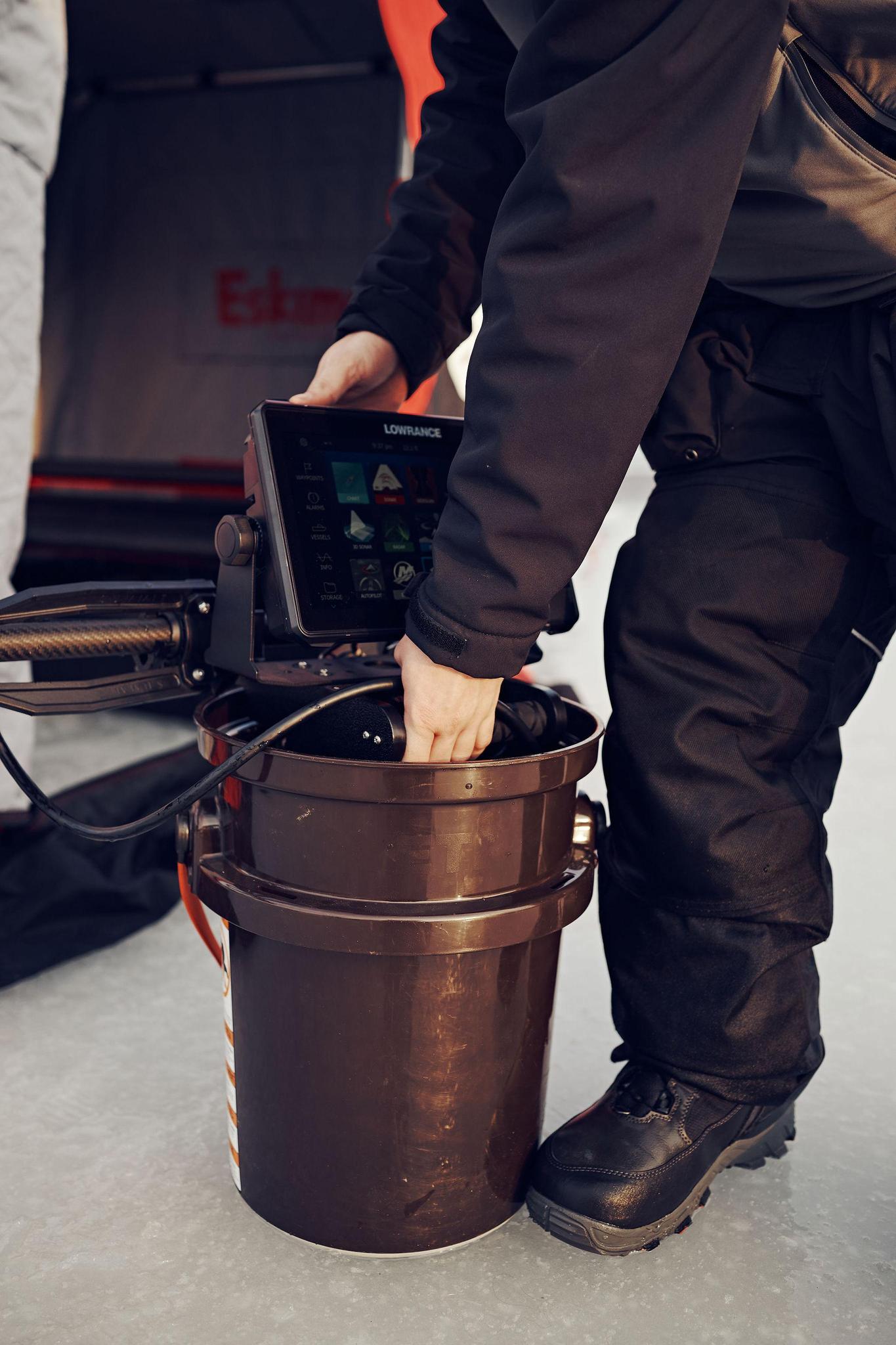

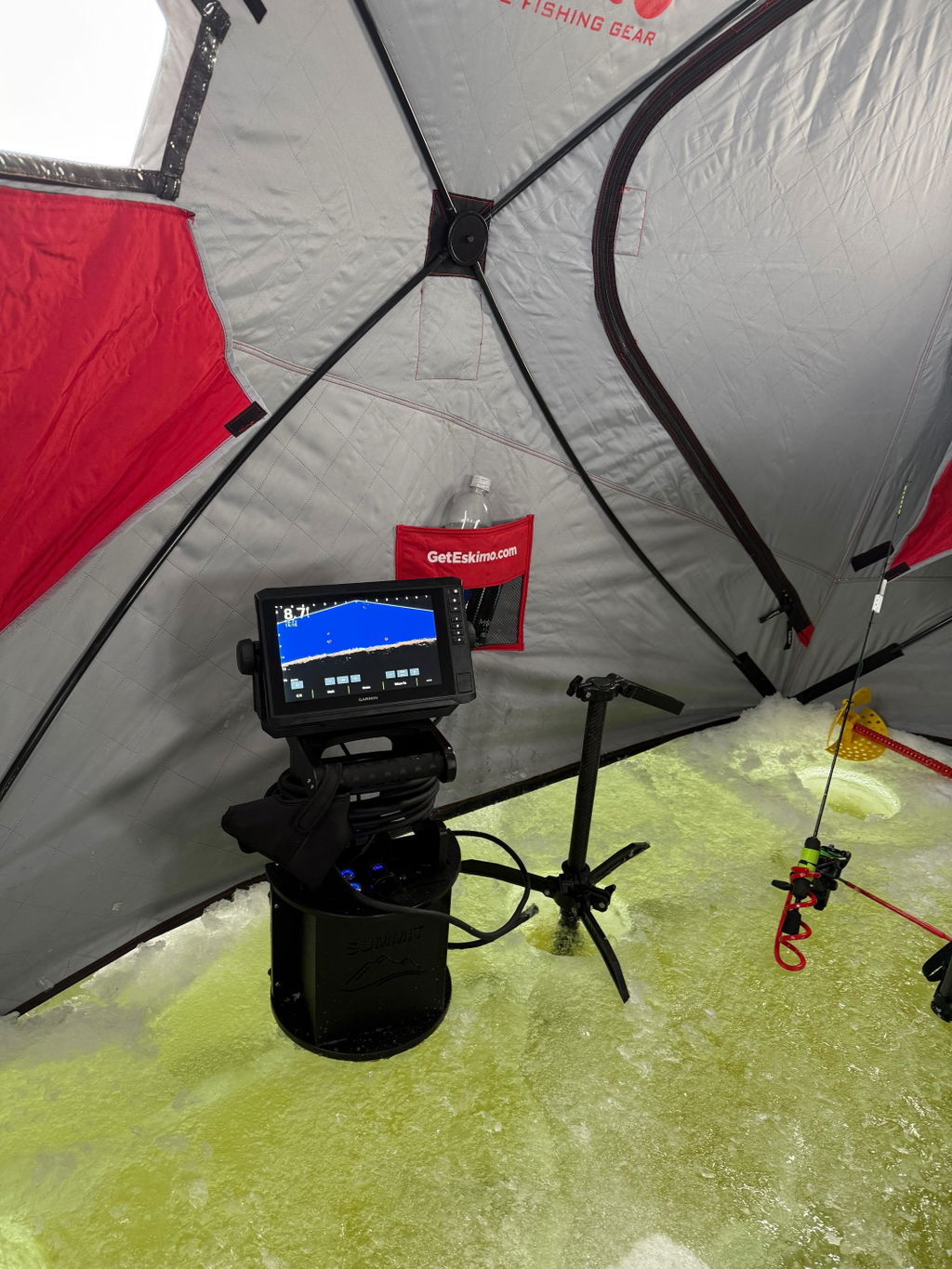

The Summit Tallboy Shuttle is a compact, portable unit designed to fit securely in a 5-gallon bucket — perfect any ice angler looking to advance their forward facing sonar system.
Note: 5-gallon bucket not included. Add your screen cradle, screen, black box, and power cable from your specific electronics.
Universal Fit & Compatibility

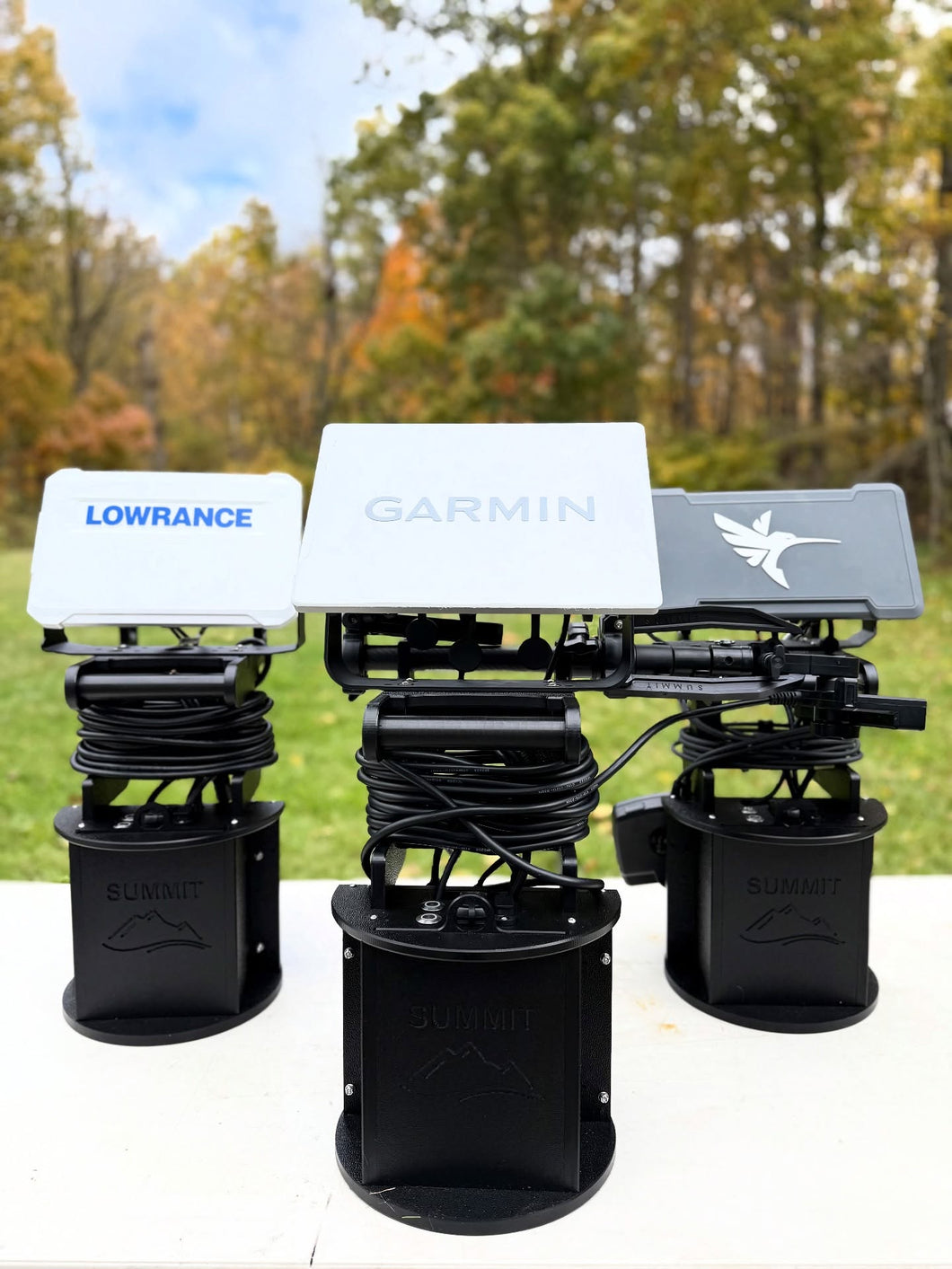

Fits most 5-gallon buckets and supports Garmin, Lowrance, and Humminbird screens up to 12". Fully compatible with LiveScope, Active Target, and MEGA Live systems.
Not compatible with standard Summit shuttle accessories, except the Summit UV Shuttle Light (sold separately).
Built to Perform

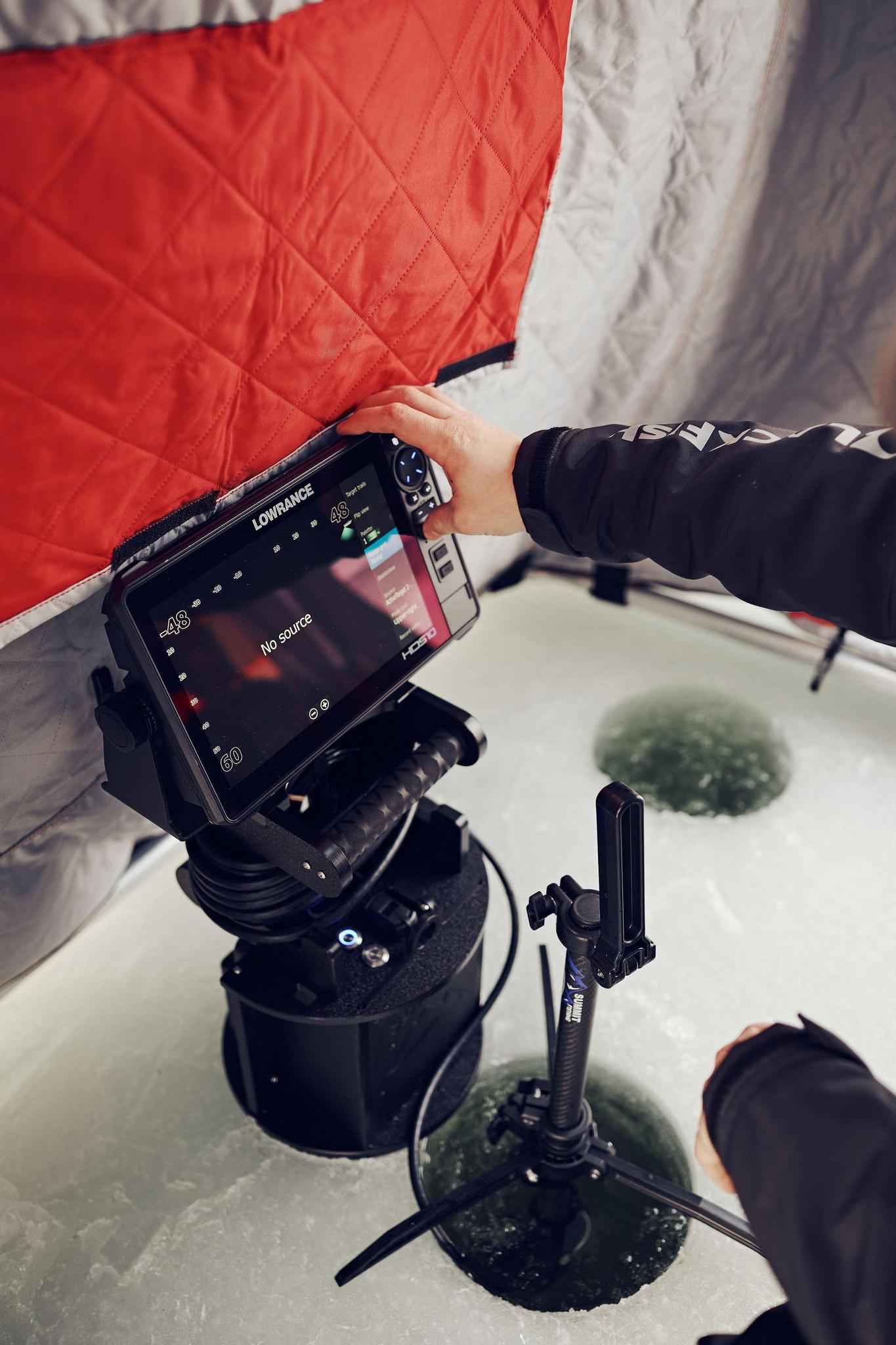

Placing the chartplotter 18" off the ground, it’s the tallest shuttle on the market, offering unmatched visibility and comfort. Includes pole holders that fit the Summit Gen 2 and Carbon Fiber Transducer Poles, plus any other 1.125" OD pole.
Smart, Tool-Free Design
-
Easy-access battery compartment for toolless battery swaps
-
Pre-wired control panel with:
-
SAE charging port
-
Two power buttons (main + auxiliary switch controlling USB/USB-C ports and voltage meter)
-
Voltage meter
-
USB & USB-C charging ports
- Optional UV light kit sold separately.
-
-
Extra cable management space and a rounded handle for easy carrying
Built to Last
Constructed from marine-grade UV-resistant HDPE, the Bucket Shuttle is built for extreme conditions. Ships fully assembled with a tool-less quick-connect wire harness, ready to fish right out of the box.
Battery Compatibility
Compatible with most current ice fishing electronics batteries, including (but not limited to):
-
Summit Lithium: 20AH, 32AH, and 52AH
-
Amped Outdoors: Dual 7.5/12/15AH, Single 18AH, 20AH, 30AH Wide, 32AH, 52AH
-
Norsk: Dual 7.5/15AH, Single 20AH, 32AH, 52AH
-
Dakota Lithium: Dual 10AH/12AH, Single 18AH, 23AH
Max Battery Size: 150 × 99 × 131 mm (5 7/8" × 3 29/32" × 5 1/8")
Key Highlights
✅ Made in the USA

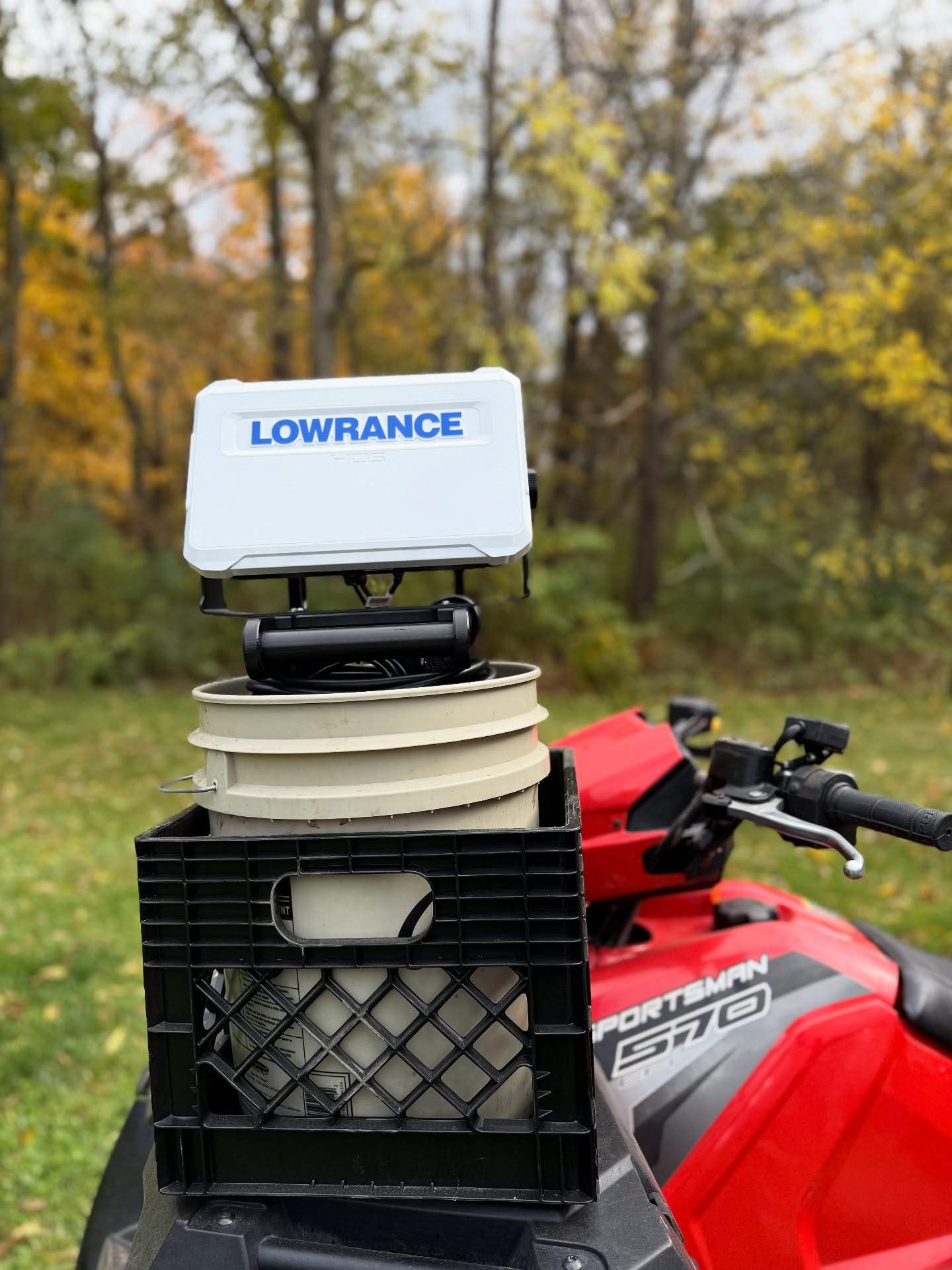

✅ Fits most 5-gallon buckets and milk crates
✅ Highest shuttle height on the market (18")
✅ Tool-free battery access and quick-connect wiring
✅ No boat docking system or bag offered
✅ Compatible with Summit UV Shuttle Light
THIS LISTING IS THE TALLBOY SHUTTLE ONLY. ALL RELATED CHARTPLOTTERS, TRANSDUCERS, BATTTERIES, TRANSDUCER POLES, POLE MOUNTS AND OTHER ACCESSORIES ARE NOT INCLUDED IN THIS LISTING.
Customer Reviews

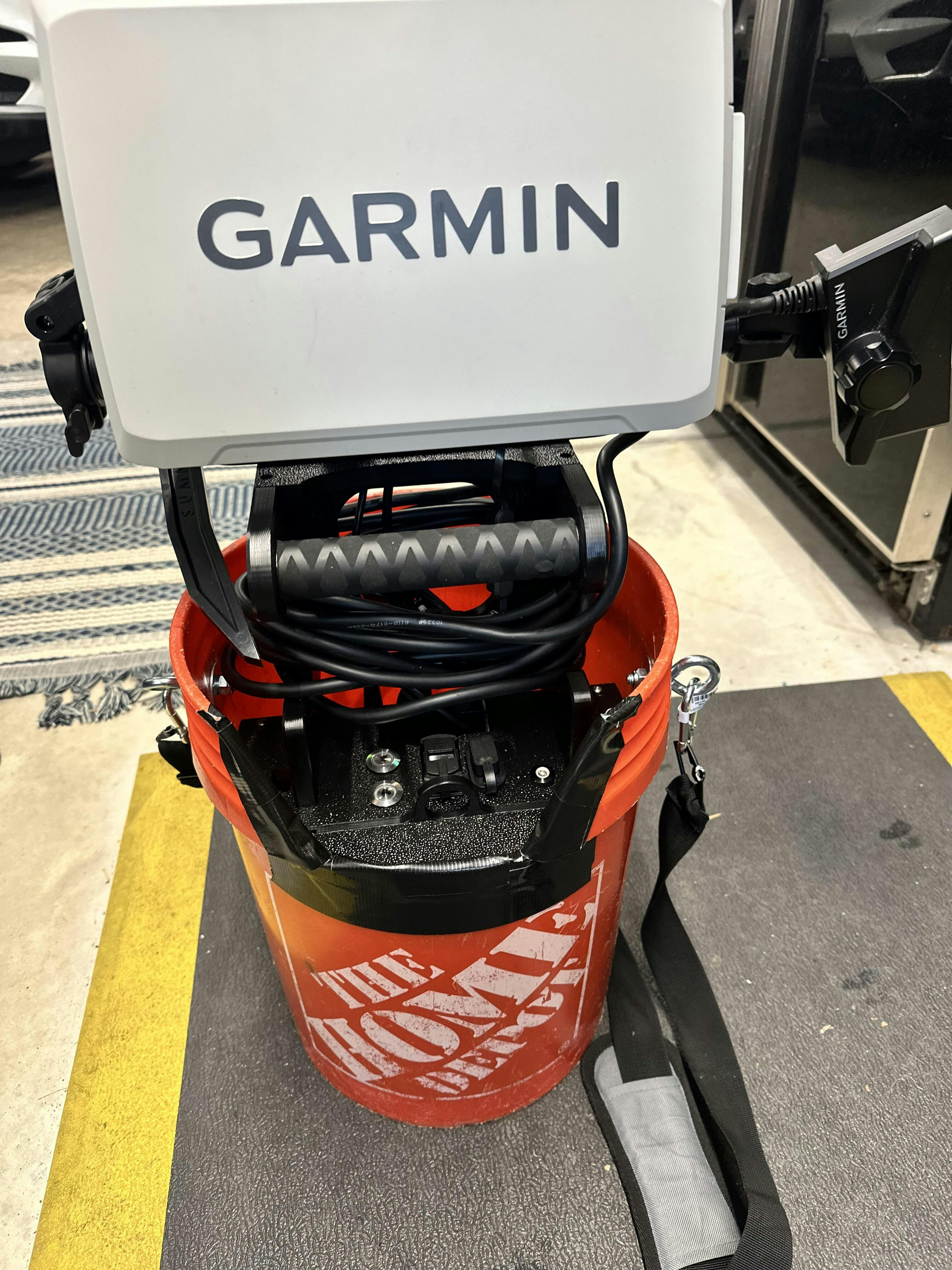

It’s a good start for a better way to view the chart plotter and carry the Livescope around. As designed, the faceplate is not easy access when the tall boy sits in a 5 gal pail. I cut out a section of the pail to better access the faceplate. The faceplate could be tilted towards the user too.
I added 2 inches of foam to raise the tall boy in the bucket. Next will be too somehow tie the tall boy into the bucket so it doesn’t wobble around. The center of gravity is not around the Handle so carrying it by the tall boy handle is not a good way.
Needs a 2.0 redesign for better ergonomics and balance.
Product looks good so far but very disappointed in the process. Delivered after 3 weeks. No heads up there was a delays, no idea when I would receive it, no heads up or apologies for the long delay and hindering to ice fishing trips that I was anticipating to use the shuttle.

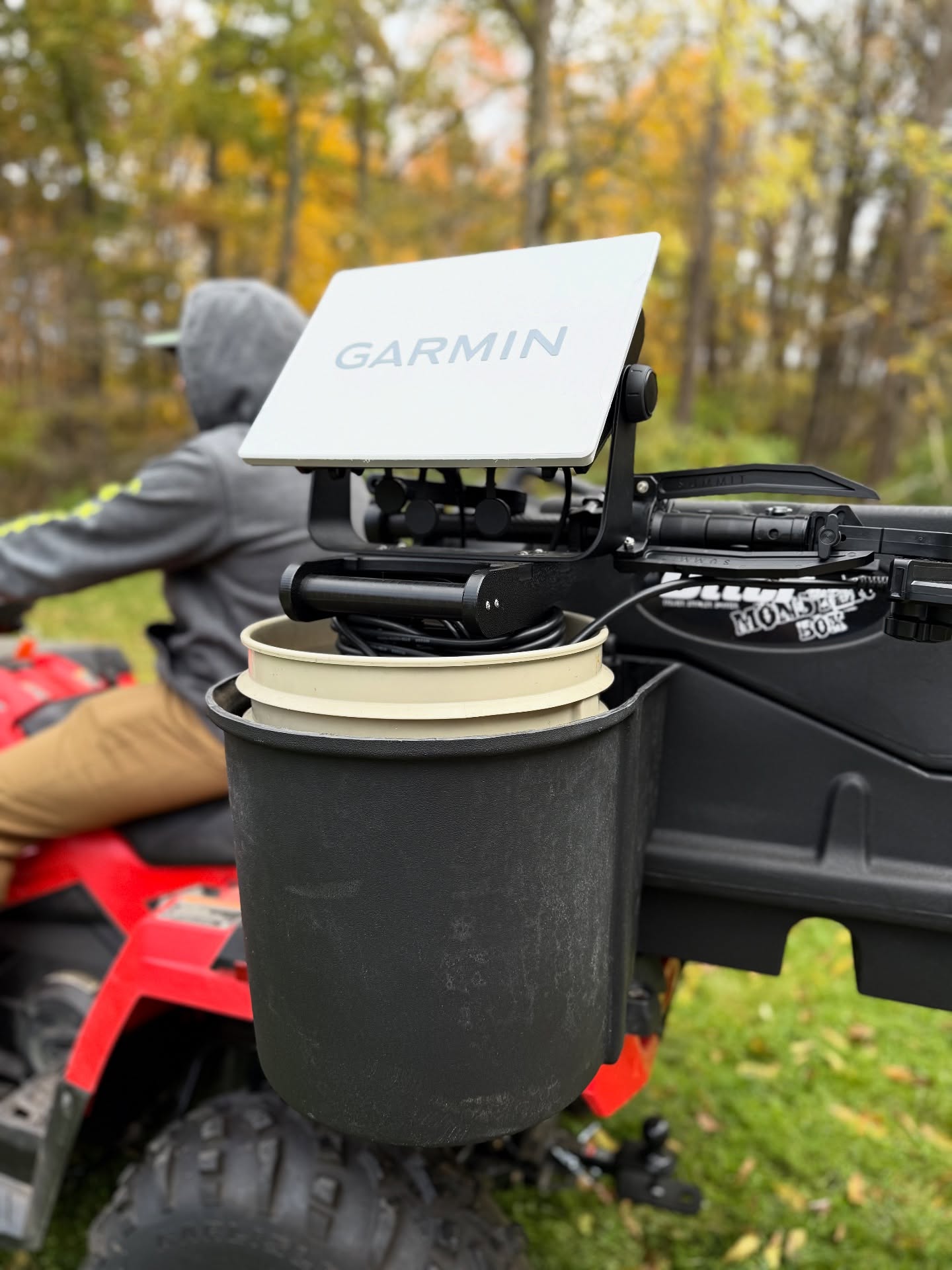

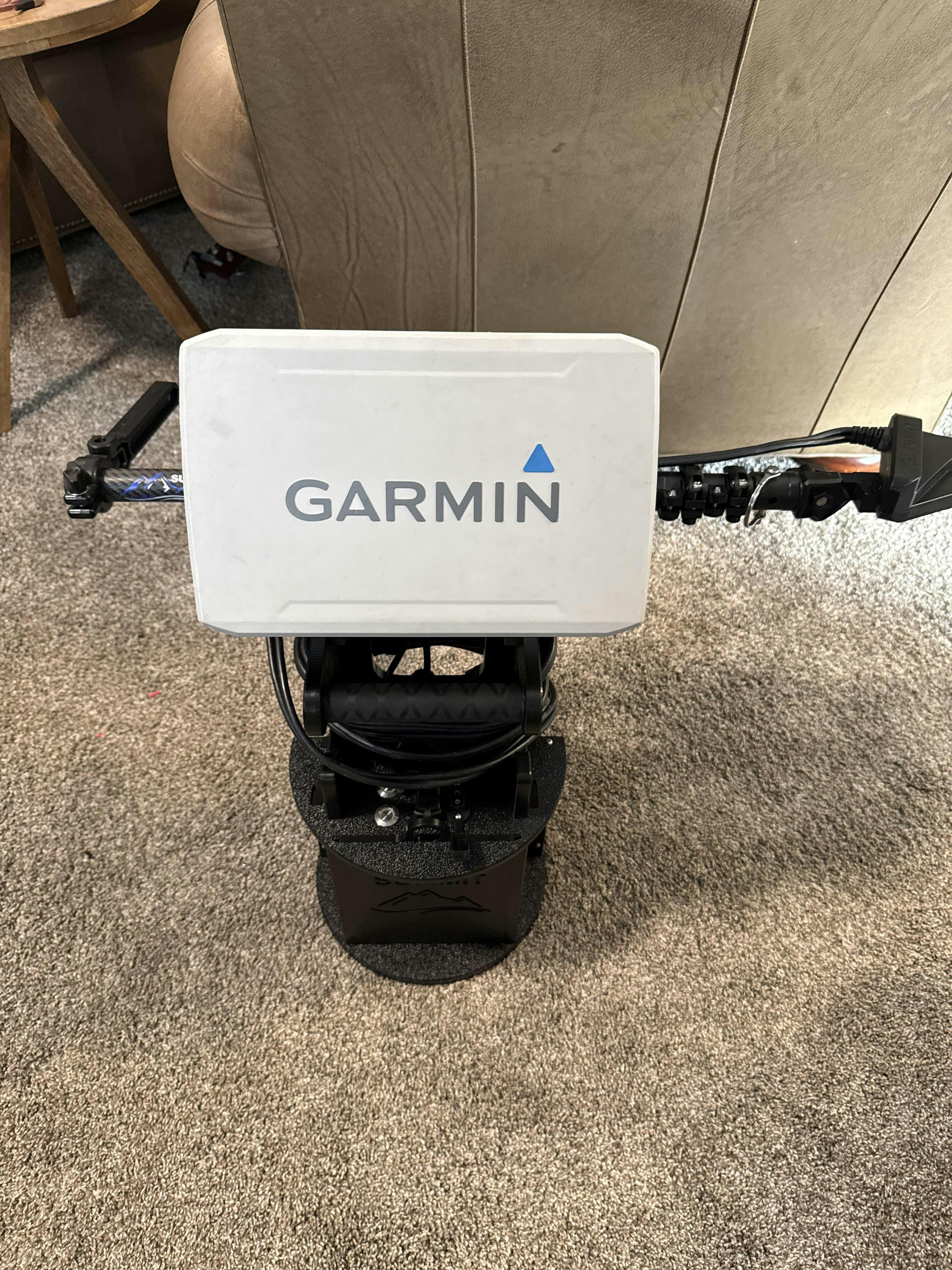

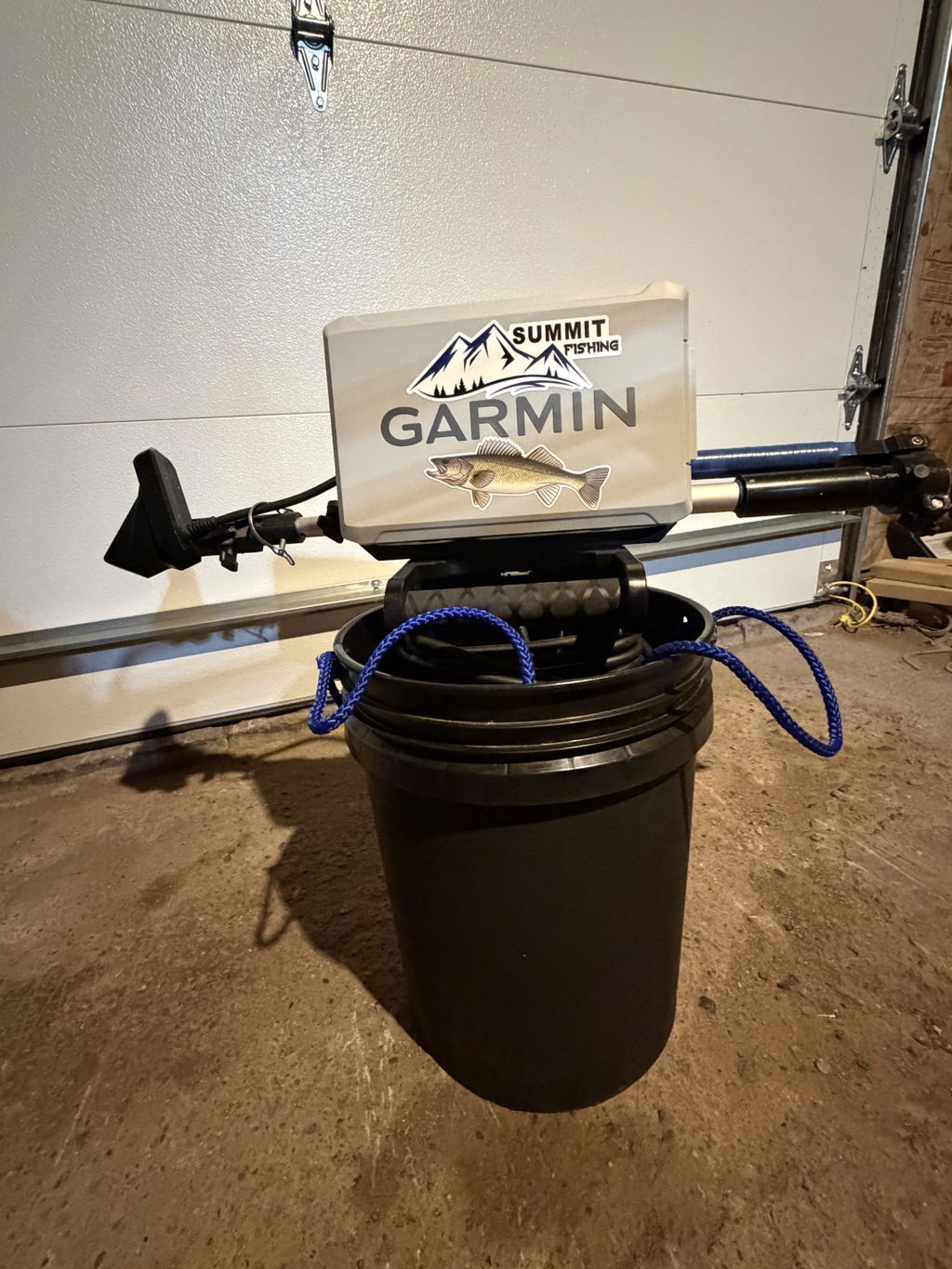

I think it’s a great product. I used to set my old shuttle on a bucket in my hub shelter but now I don’t have to. There are several things I really like. I can modify my bucket 100 different ways. I added two rod holders to my bucket for faster hole hopping. There are a dozen different bucket holders for my ATV that make it way easier to mount the shuttle. I added a piece of rigid construction foam to the bottom of my bucket. It keeps the battery off the ice and the shuttle sits up a little higher making the buttons easier to access. I am also adding something to hold the shuttle in the bucket when I want. This makes it easy to use the handle on the shuttle while keeping it in the bucket at all times. I also like that you can swap batteries quickly on overnight trips with no tools. Overall great product.

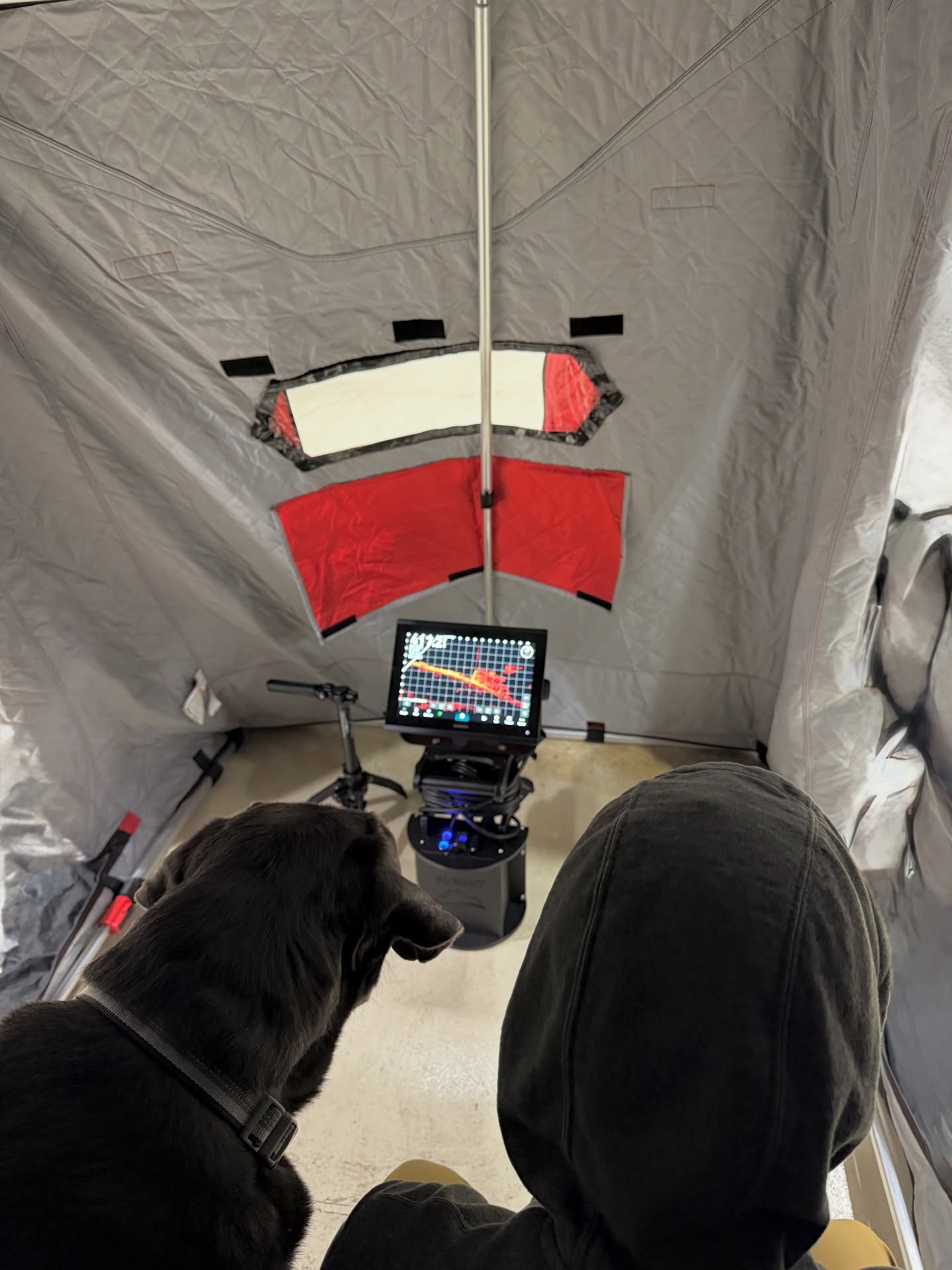

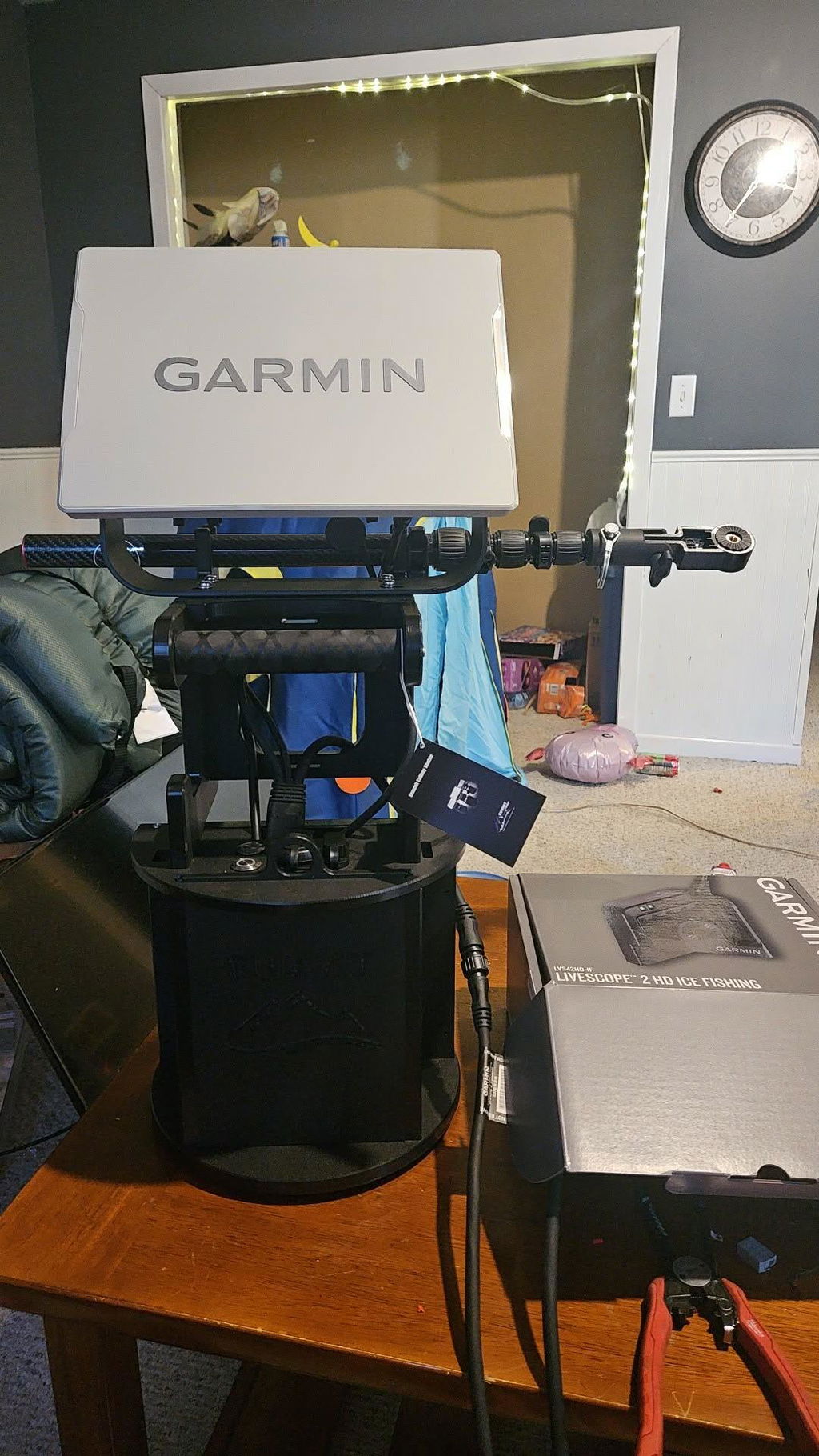

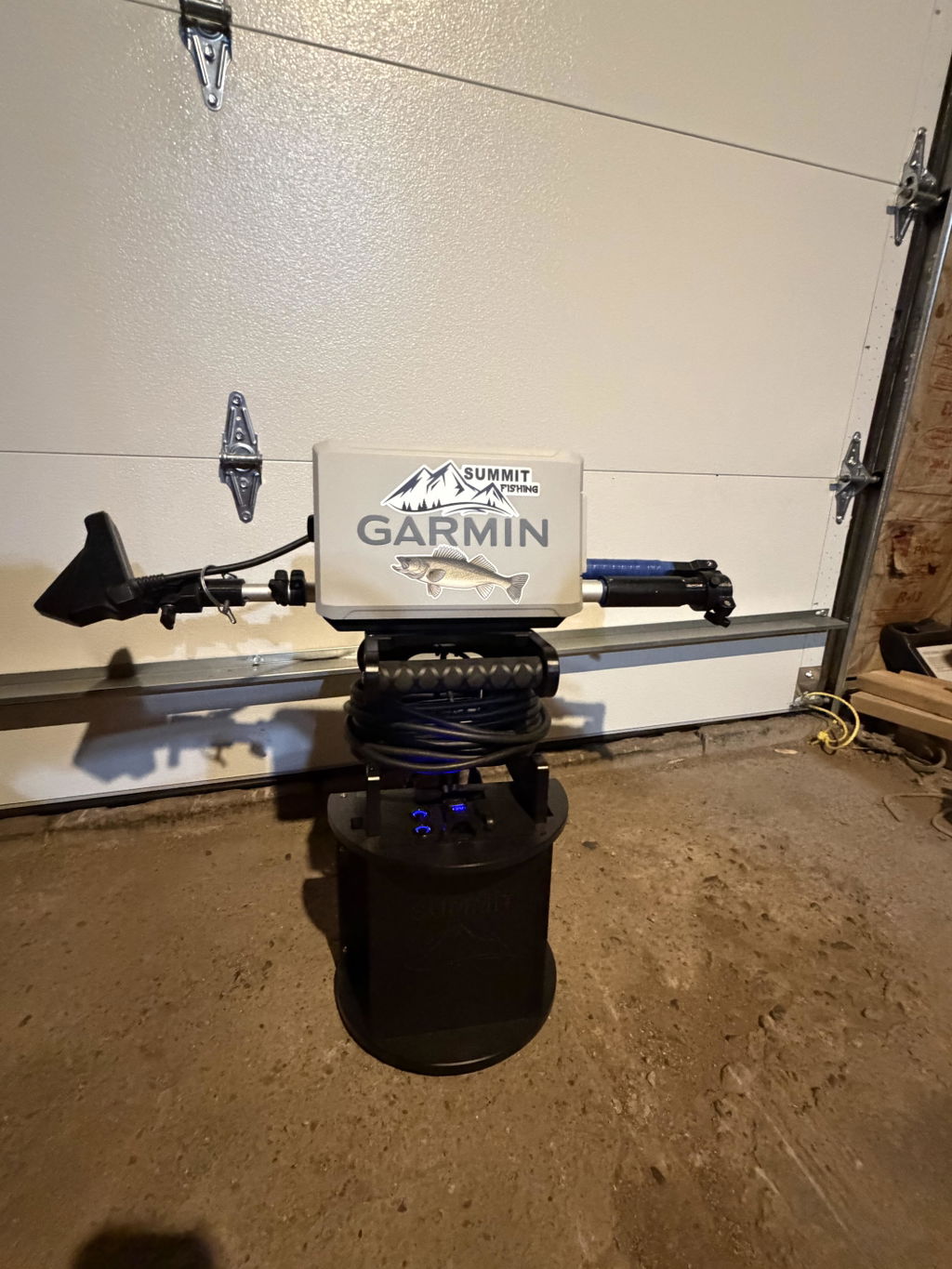

Very high quality. Was exactly what I needed for hub and flip over shack fishing. My neck was getting sore looking down at my previous shuttle. This places my fishfinder at the perfect height - and it fits in a 5 gallon bucket that I can haul in my rear snowmobile rack. Great job Summit!! Thank you.
It’s built very good and lite the only problem is I already have summit shuttle so I’m not using it but my buddy did not have a shuttle and he loves it
