Overview

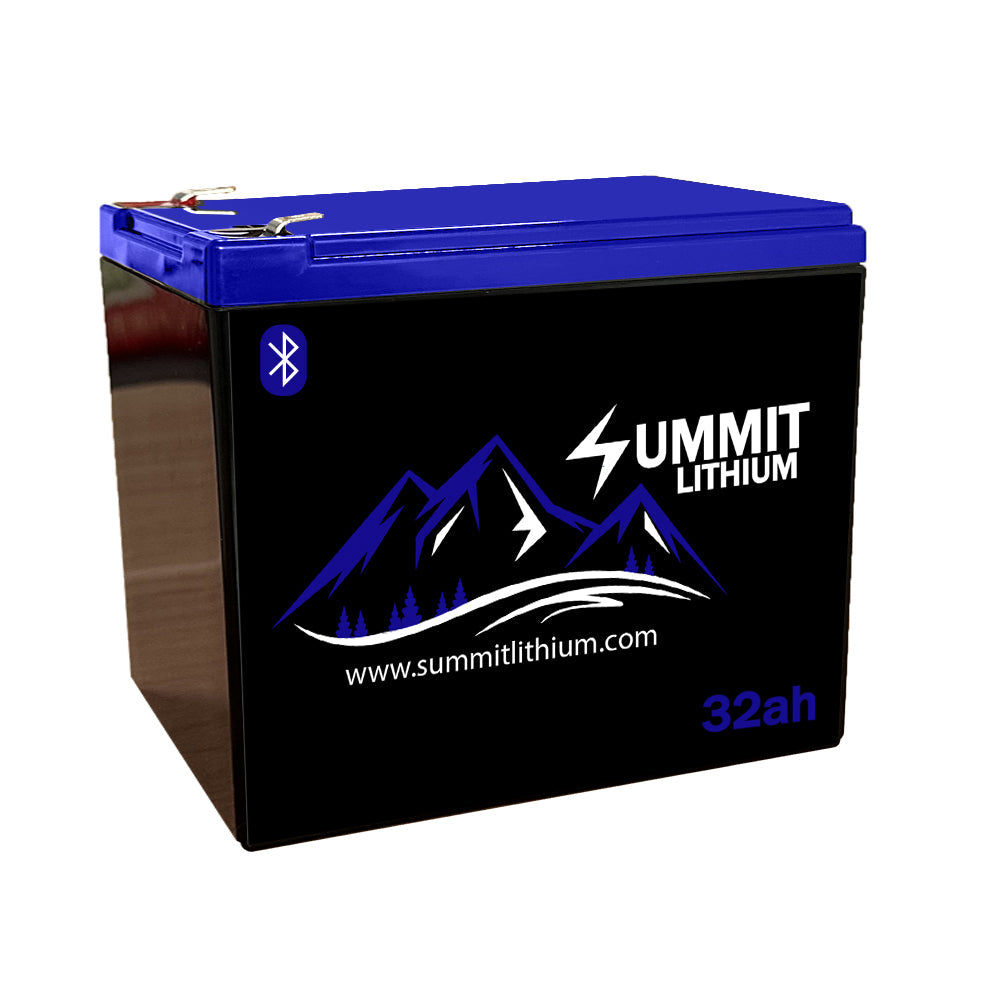

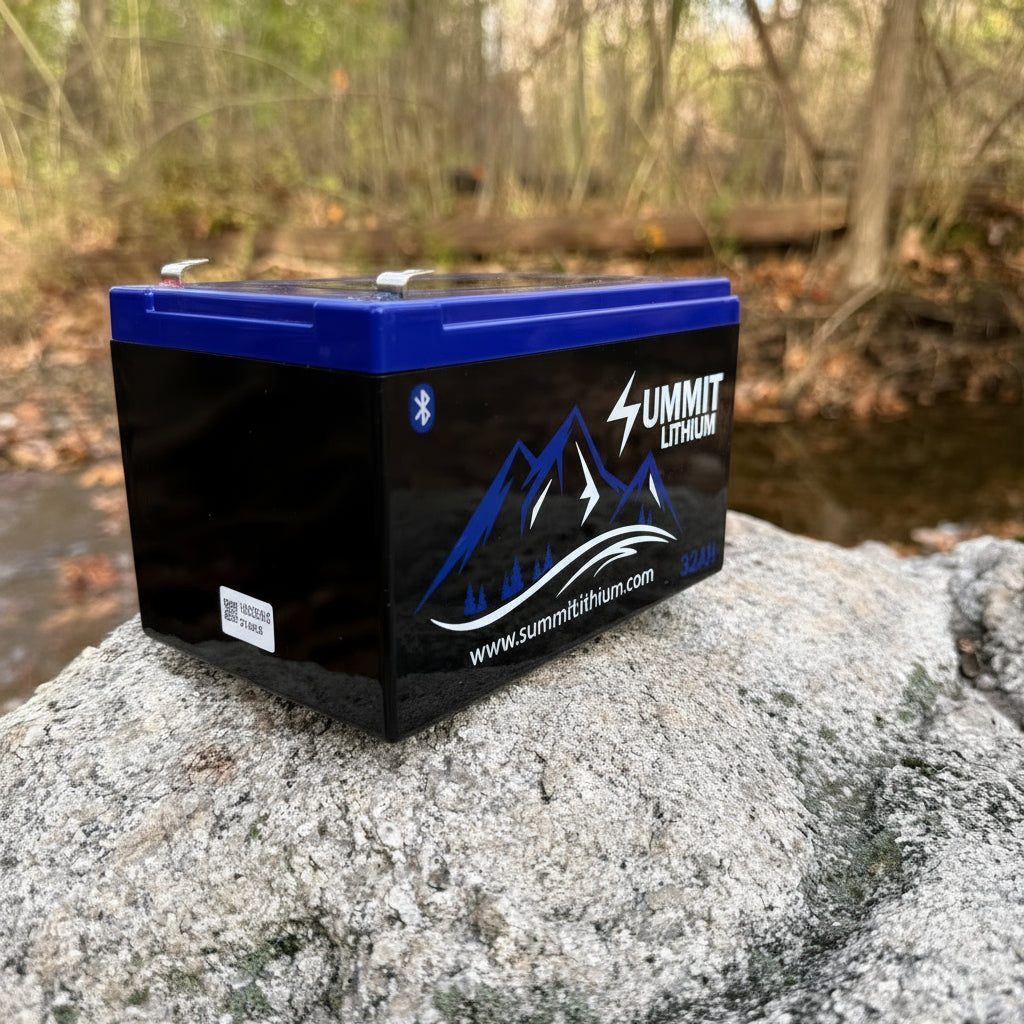

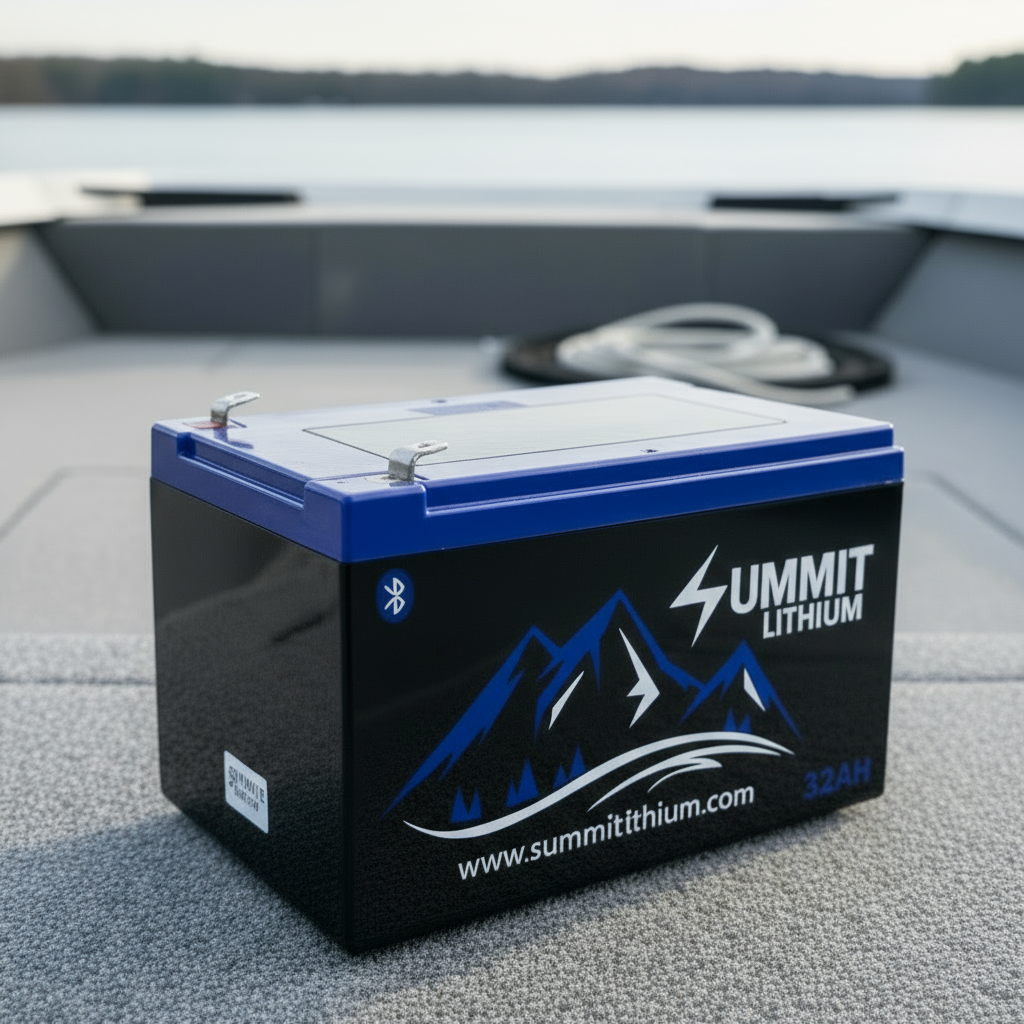

The Summit Lithium 14.8 Volt 32Ah NMC Battery is the sweet spot for most forward-facing sonar setups. It offers excellent runtime, reliable cold-weather performance, and the power overhead needed for 9–10" screens without stressing the battery. The 32Ah is the workhorse of the lineup — strong, stable, and built for anglers who fish long hours but want a to save weight over the 52ah battery.
Industry leading Battery Management Platform
Core Features:
- Real-Time Performance Monitoring
- State of Charge (SOC) accuracy to 99.5%
- Individual cell voltage tracking (±0.01V)
Multi-zone temperature profiling
- Advanced Protection Systems
- Instantaneous over/under voltage response
- Microsecond short-circuit interruption
- Multi-point thermal management
Active Cell Balancing
- Continuous voltage synchronization
- Prevention of cell degradation during cycles
- Enhanced energy preservation
Key Features:

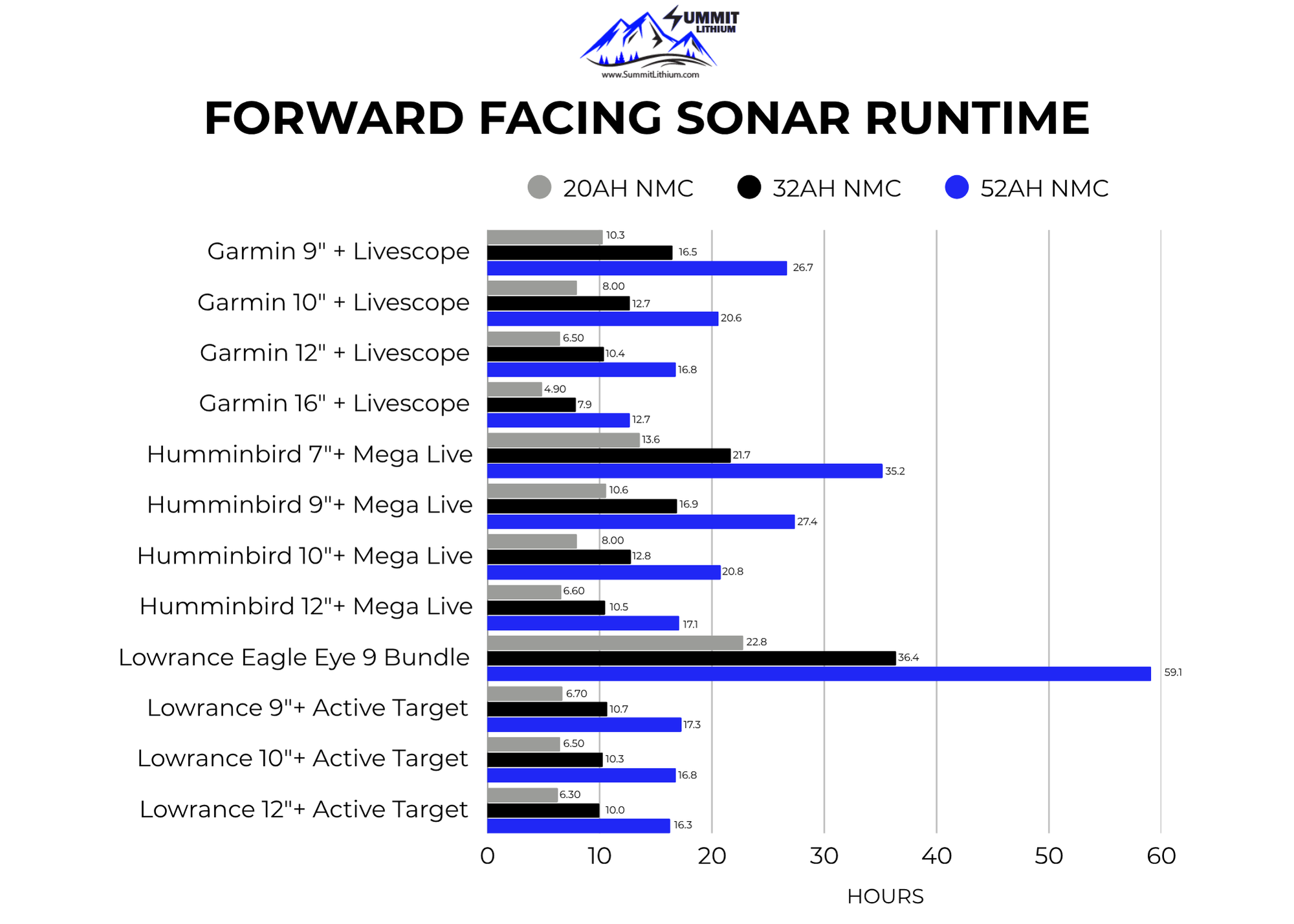

- All-day power for mid-size sonar bundles
- High-stability 14.8V output for crisp FFS imaging

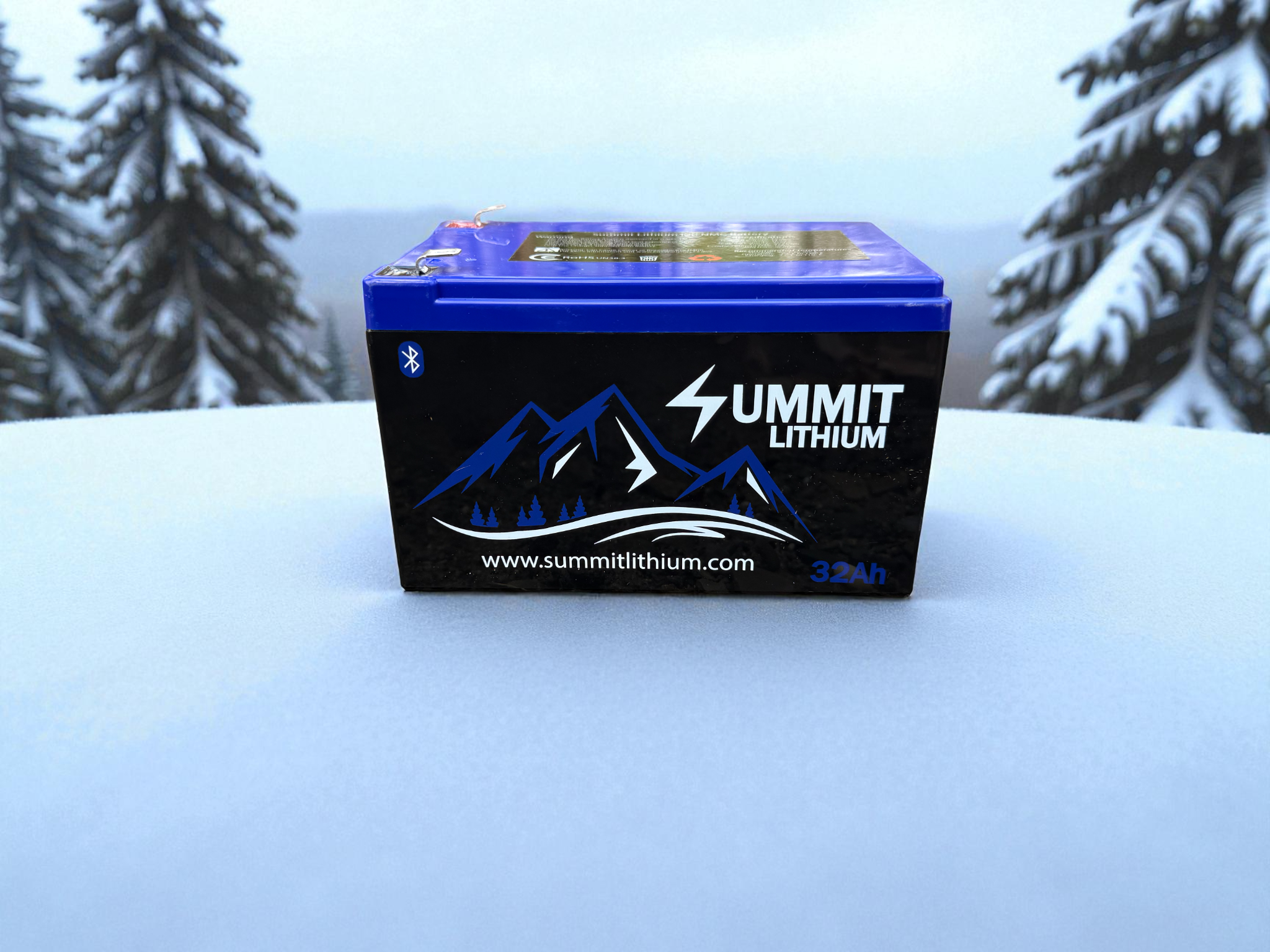

- Excellent cold-weather performance
- Bluetooth App support — check charge, health, cycles
- Lightweight at 4.92 lbs
- NMC chemistry with high energy density
- Fast 6A charging included
- SAE harness in the box
- Integrated BMS for safety and reliability
Ideal For:

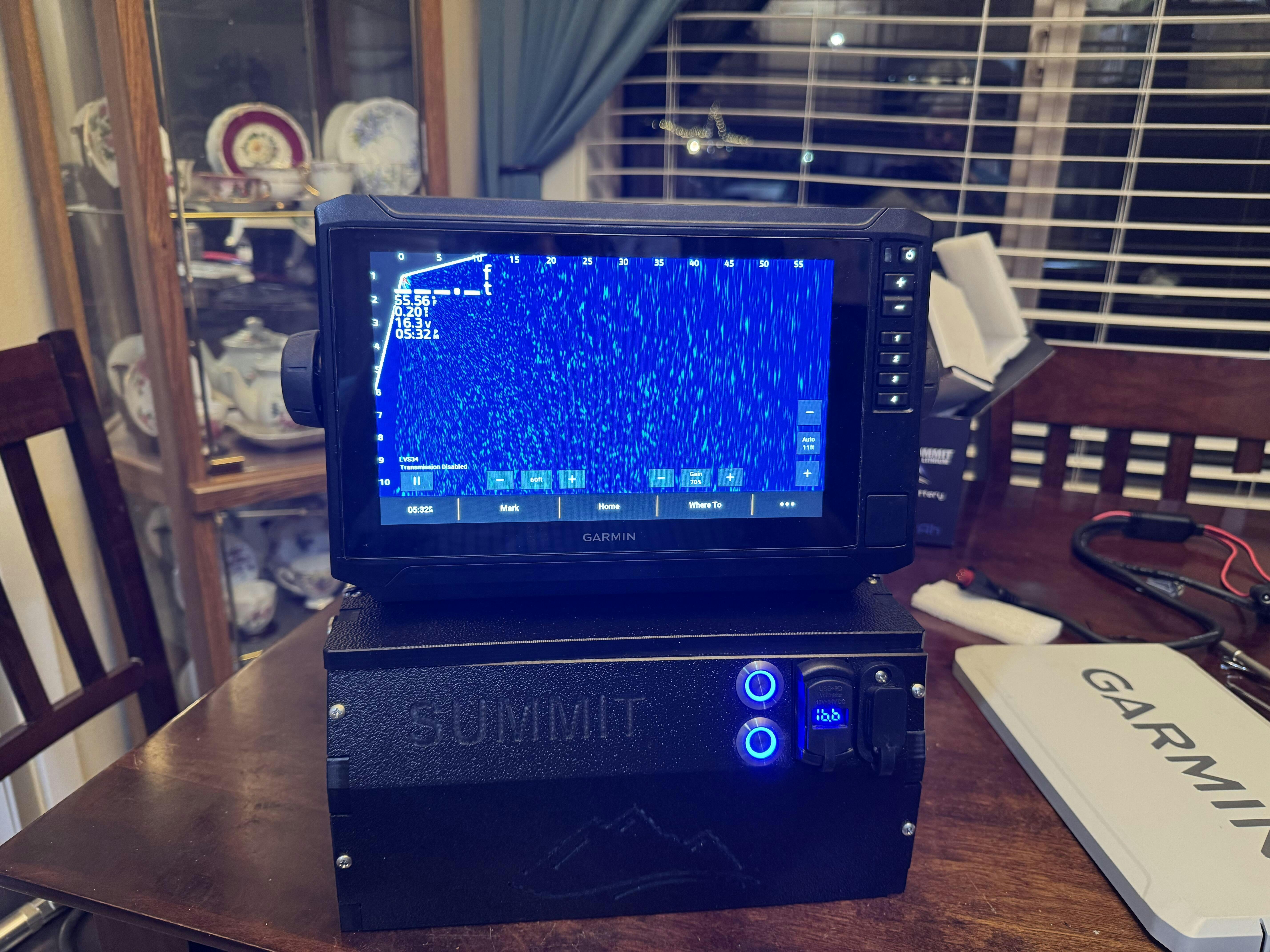

- Fits best inside the Summit Shuttle but is compatible with most popular brands. Summit Fishing, HD Innovations, ArcLab, Fin Gear, Fish Armor, Ice Master Fishing, TKI, BassKhang, Vexilar, etc.
- 9–10" screens
- All portable shuttles
- All-day ice fishing
- Tournament scouting
Technical Specs:
- Model: 3204
- Voltage: 14.8V nominal
- Peak Voltage: 16.8V
- Capacity: 32Ah
- Max Continuous Discharge: 15A
- Weight: 4.92 lbs
- Chemistry: Lithium NMC
- Bluetooth App: Yes
- Certification: UN38.3
- Dimensions: 5 7/8" x 3 7/8" x 3 5/8"
- Weight: 4.8 lbs
What’s Included:
- 32Ah Summit Lithium Battery
- 6A Fast Charger
- SAE Quick-Connect Harness
Safety Notes:
- Charge only with included charger
- Do not charge below 32°F
- Keep away from water or moisture
- Do not expose above 158°F
- Do not open, modify, or short-circuit
