52AH NMC Lithium ION Battery With Charger and Bluetooth
Sale price
$319.99
Shipping calculated at checkout
In stock
Overview
The Summit Lithium 14.8 Volt 52Ah NMC Battery is the top-end power option for anglers running heavy sonar loads, 10–12" screens, Live Imaging + mapping combos, or long tournament days. It delivers serious runtime, rock-solid voltage stability, and performance in temperatures that shut other batteries down. If you fish long, push your equipment, or run multiple electronics off one battery — this is the one to choose.
Industry leading Battery Management Platform
Core Features:
- Real-Time Performance Monitoring
- State of Charge (SOC) accuracy to 99.5%
- Individual cell voltage tracking (±0.01V)
Multi-zone temperature profiling
- Advanced Protection Systems
- Instantaneous over/under voltage response
- Microsecond short-circuit interruption
- Multi-point thermal management
Active Cell Balancing
- Continuous voltage synchronization
- Prevention of cell degradation during cycles
- Enhanced energy preservation
Key Features:

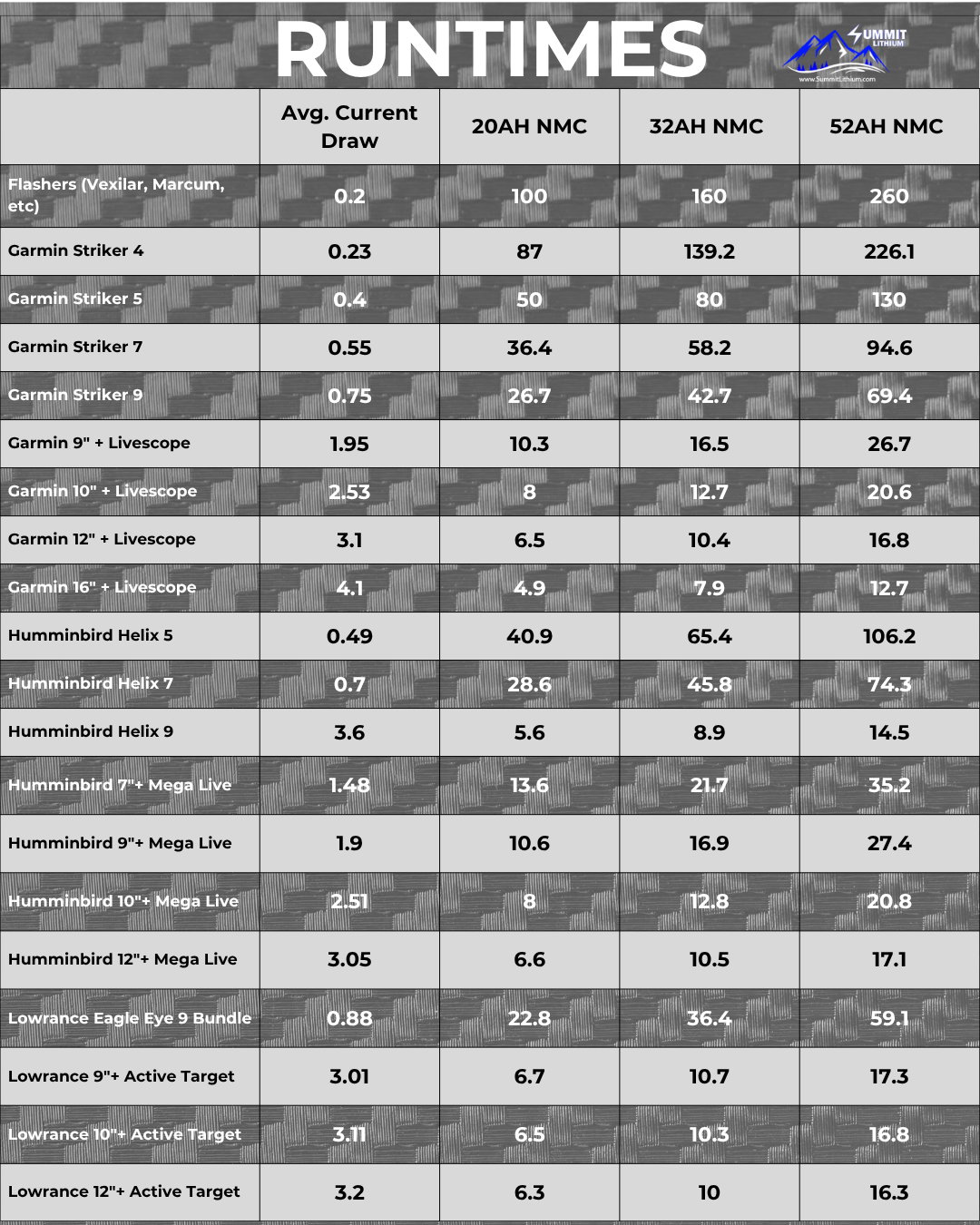

- Maximum runtime for any sonar bundle
- Rock-steady 14.8V output
- Outstanding cold-weather performance
- Bluetooth App monitoring
- Huge 52Ah capacity
- Fast charging with included 6A charger
- NMC chemistry for long cycle life and high power density
- Ideal for 10–12" screens and heavier loads
- Integrated BMS with full protection
Ideal For:
- Fits best inside the Summit Shuttle but is compatible with most popular brands. Summit Fishing, HD Innovations, ArcLab, Fin Gear, Fish Armor, Ice Master Fishing, TKI, BassKhang, Vexilar, etc.
- 10–12" screens
- Weekend-long trips
- Tournament anglers
- Anyone who demands the longest runtime possible
Technical Specs:
- Model: 5204
- Voltage: 14.8V nominal
- Peak Voltage: 16.8V
- Capacity: 52Ah
- Max Continuous Discharge: 15A
- Weight: 6.95 lbs
- Chemistry: Lithium NMC
- Bluetooth App: Yes
- Certification: UN38.3
- Dimensions: 5 7/8" x 3 7/8" x 5 1/8"
- Weight: 6.7 lbs
What’s Included:
- 52Ah Summit Lithium Battery
- 6A Fast Charger
- SAE Quick-Connect Harness
Safety Notes:
- Charge only with included charger
- Do not charge below 32°F
- Keep away from water or moisture
- Do not expose above 158°F
- Do not open, modify, or short-circuit
- Do not wire in series
- Do not use for permanent on-board/boat installs
Why Summit
Built for portability. Backed by a 2-year warranty. Supported by real people who use this gear every day.
Don’t run half a setup
Pair your gear the right way the first time. Our mounts, poles, and shuttles are built to work together—so you’re not piecing things together on the water.
