ALL SHUTTLES PURCHASED AFTER 10/24/2025 WILL INCLUDE OUR NEW ROUNDED HANDLE ATTACHMENTS!! (SEE PICTURE NUMBER 3)
- Garmin Livescope Assembly Instructions
- Wiring the Summit HD CNC Shuttle with a Factory Cable
- Wiring the Summit HD CNC Shuttle with the Garmin All-In-One Cable
- How to Hook Up Battery Charger to Summit HD CNC Shuttle
- How to Connect HD Shuttle Light to Summit HD CNC Shuttle
- Entire video on Shuttle Assembly
Summit Fishing, the pioneer of forward-facing sonar portability, introduces the next-generation shuttle, guaranteed to be the strongest, most versatile, and safest shuttle on the market. Based on the original and best-selling Summit Shuttle designed in 2018, this shuttle features numerous revisions to enhance functionality and durability. Made in the USA, proudly machined and assembled in Summit Fishing's facility.
Precision CNC machined from Marine Grade UV-resistant HDPE, the Heavy-Duty shuttle effortlessly carries loads exceeding 1,500 lbs, surpassing all other shuttles in comparison testing. Weighing less and holding more, it eliminates concerns about short-circuit arc dangers from aluminum shuttles. (Pole holder/Light sold separately. Link Below)
FAQ
- ONE SHUTTLE FITS ALL BRANDS: Fits all brand of chartplotters up to 16".
- WORKS WITH LIVESCOPE, ACTIVE TARGET, MEGA LIVE, OR ANY OTHER SONAR YOU WOULD LIKE TO MOUNT TO THE SHUTTLE.
-
COMES FULLY ASSEMBLED INCLUDING WIRE HARNESS WITH TOOL-LESS QUICK CONNECTIONS.
- WE DO NOT INSTALL THE HD LIGHT.
- SHUTTLE DIMENSIONS: 7.5 L x 10.5 W x 12.25 H.
- BATTERY TRAY DIMENSIONS: LWH: 15099131, Inches - 5 7/8 x 3 29/32 x 5 1/8.
- YOU CAN USE THE GARMIN LITHIUM BATTERY BUT YOU WILL NEED TO MOVE THE BATTERY HOLD DOWN BACK. (GARMIN CHARGER WILL NOT CONNECT TO OUR SAE CHARGE PORT).
- CONTAINS ALL HARDWARE AND WIRING TO YOUR ELECTRONICS POWER CABLES.
Bag Combinations (Bags sold separately)
- ALL SCREEN UP TO 10" INCLUDING 8610 AND 106: Large Bag.
- 12" Screens: XL bag.
Compatible with ALL current electronics batteries, the following is a partial list.
- BATTERY MAX Dimension: LxWxH: 150x99x131mm, Inches - 5 7/8 x 3 29/32 x 5 1/8.
- Summit Lithium 20AH, 32 AH, and 52AH
- Amped Outdoors Dual 7.5/12/15AH, Single 18AH, 20AH, 30AH Wide, 32AH, and 52AH batteries.
- Norsk Dual 7.5/15AH, Single 20AH, 32AH, 52AH Batteries.
- Dakota Dual 10AH, 12AH, Single 18AH and 23AH Batteries.
Pole holder shown in the pictures sold separately
Glow Light shown in pictures is sold separately
Chartplotter, transducer, shuttle bag, and transducer pole shown in pictures are not included
When ordering i had a bunch of questions. Not being to tech savvy. We were texting back and forth and summitwas great to deal with. Got everything I needed and it worked exactly how the said

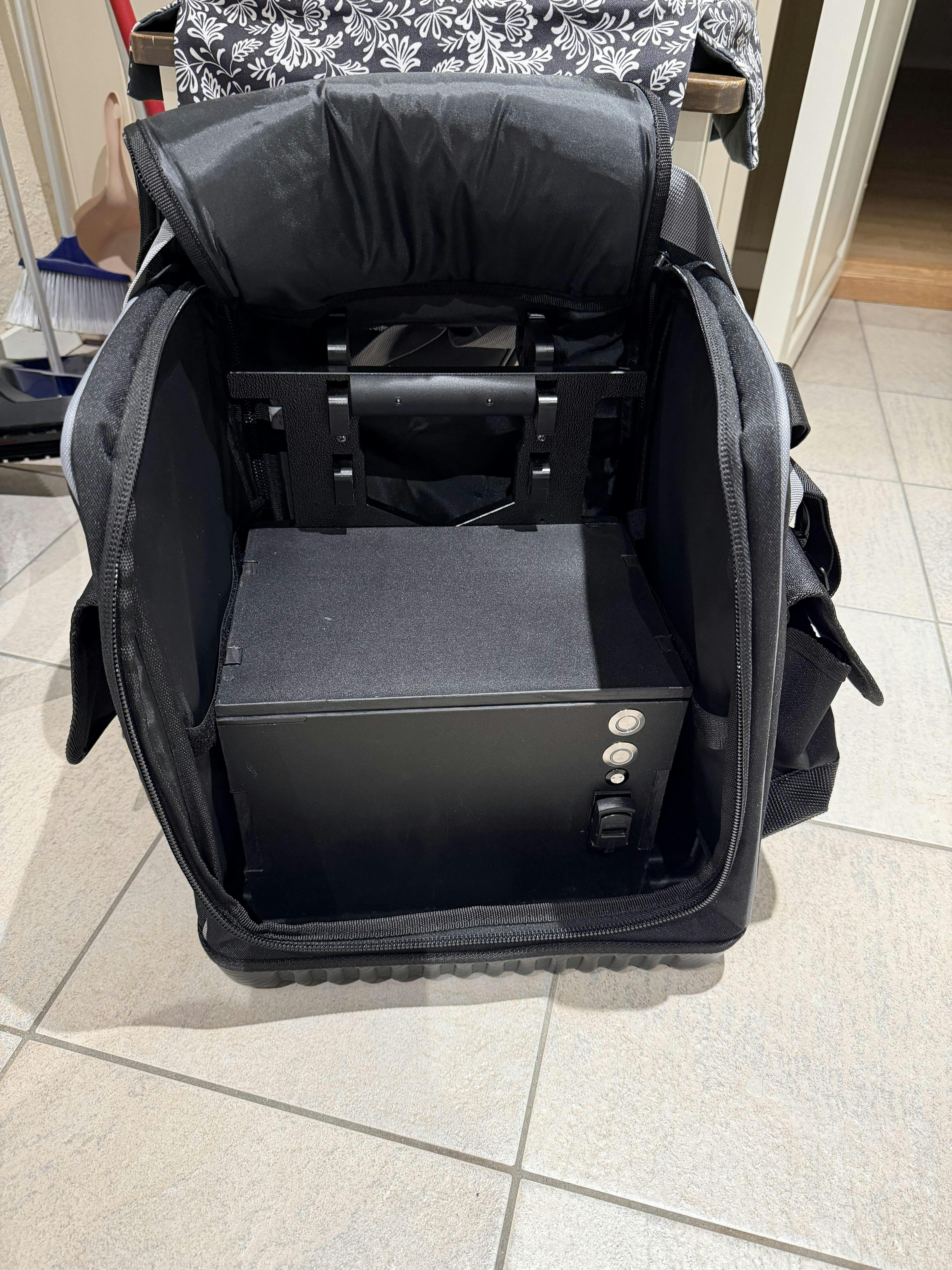

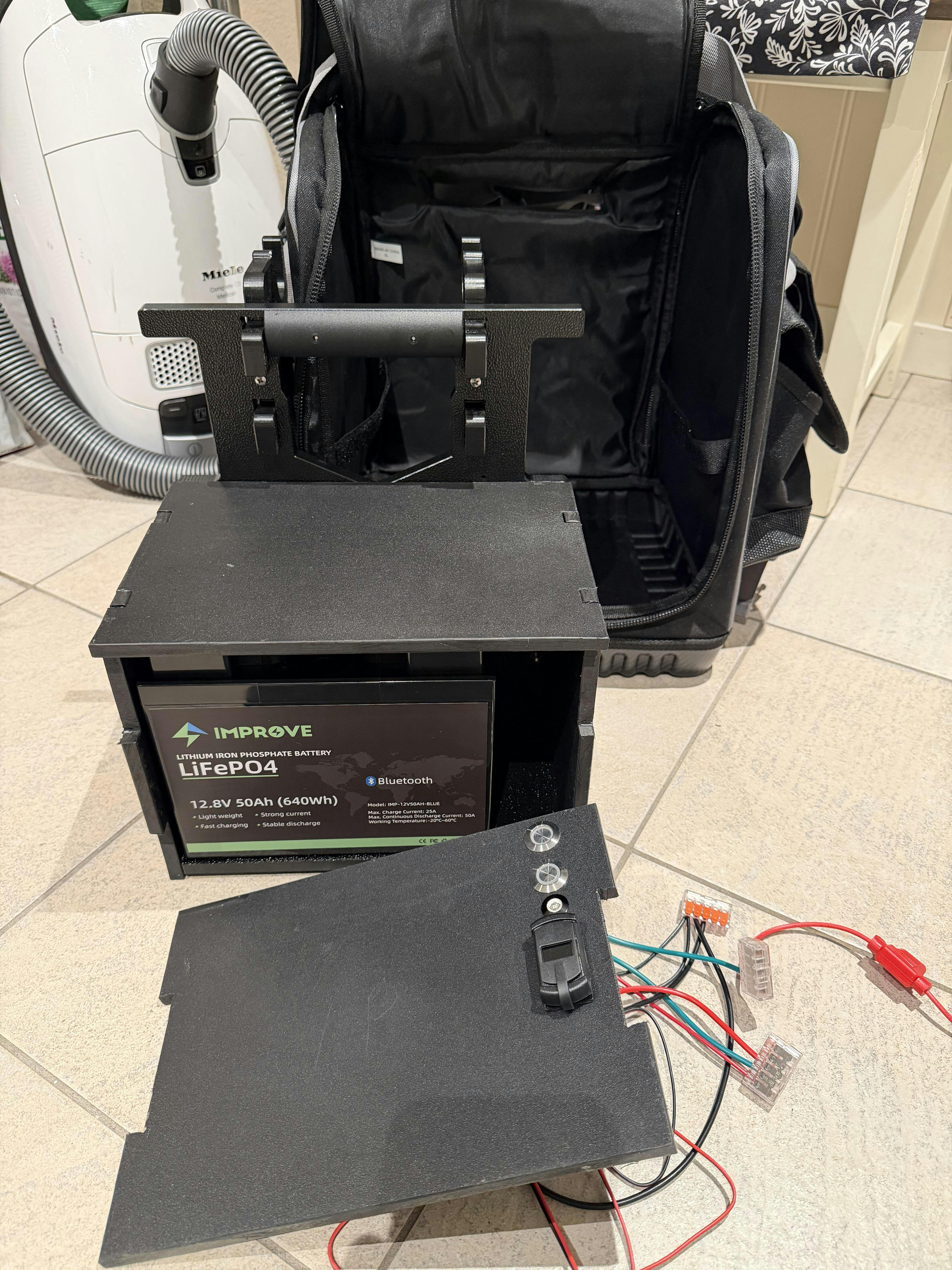

Delivery faster than I expected. It's a shame that you don't send the battery to Norway, I had to modify it a bit to put the battery in. Because there is no analogue of this capacity and size in our country. But I was satisfied.

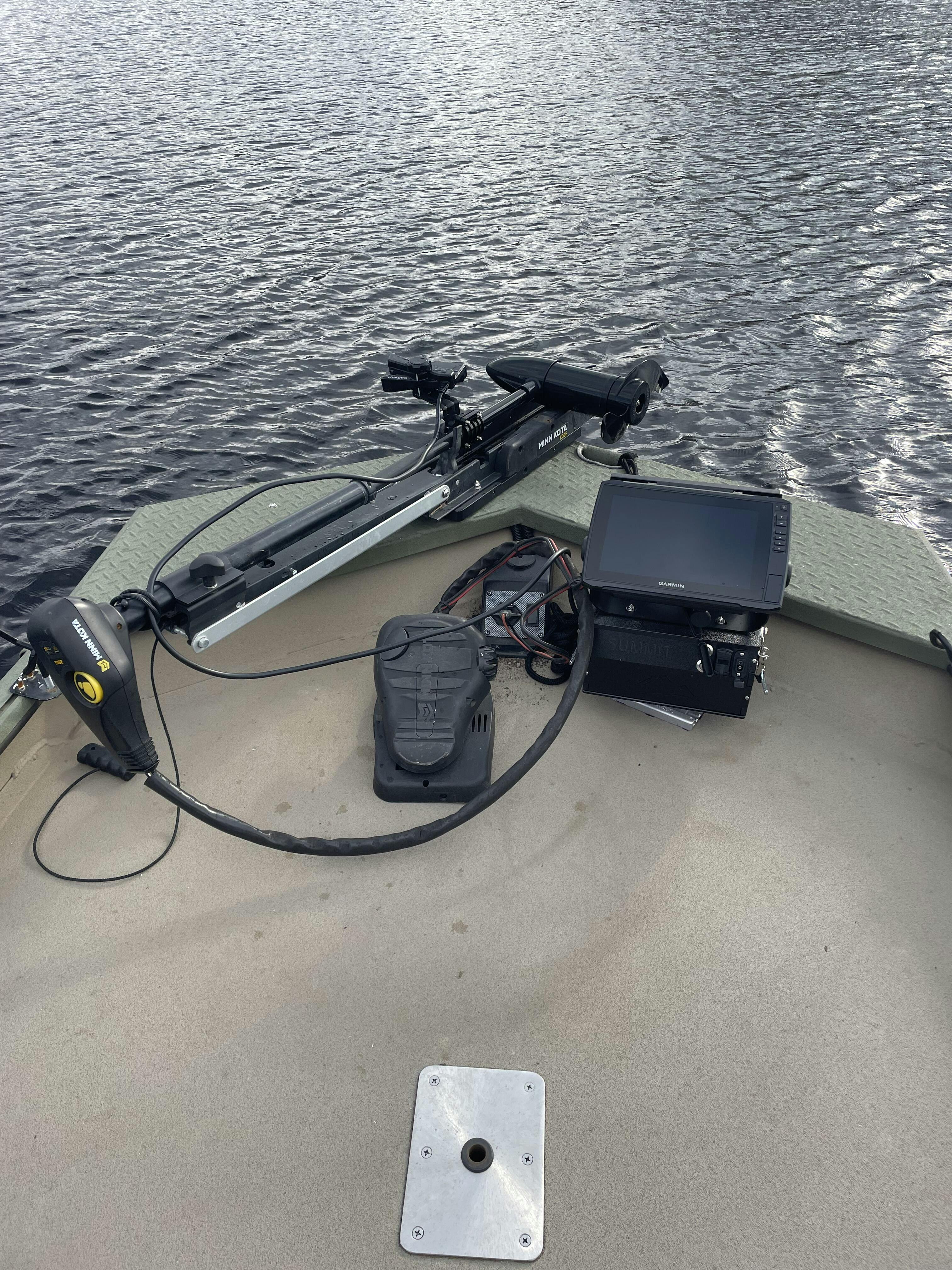

Absolutely awesome unit! Great for my application as I am using it on my jon boat. I use my boat as a multipurpose rig. Hunt, Fish, Lounge. This all in one unit has made it super easy to use livescope when I want and take it off when I don’t. Highly recommend getting this if you use your boat for more than just fishing.
This is made very well and easy to assemble. I had it all set up in less than an hour.
Easily coverted my Garmin ice bundle into this unit with a Summit pole, using Summit's installation videos. Snap connectors for wiring make this a breeze! I like the upright design and sturniness of the case! Built to last and the pole holders and Summit case top it off perfectly. Makes for easy use on multiple boats and on the ice!
